Free shipping!MKS GEN V1.2 Controller Board for 3 D Printer

KS0089
Price:
Wholesale:
5+
$23.75
    Please select the information you wantX
Quantity:
-
+
(967 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
  • Description
  • Reviews
1 2 3 4 7 8 5 6
Introduction

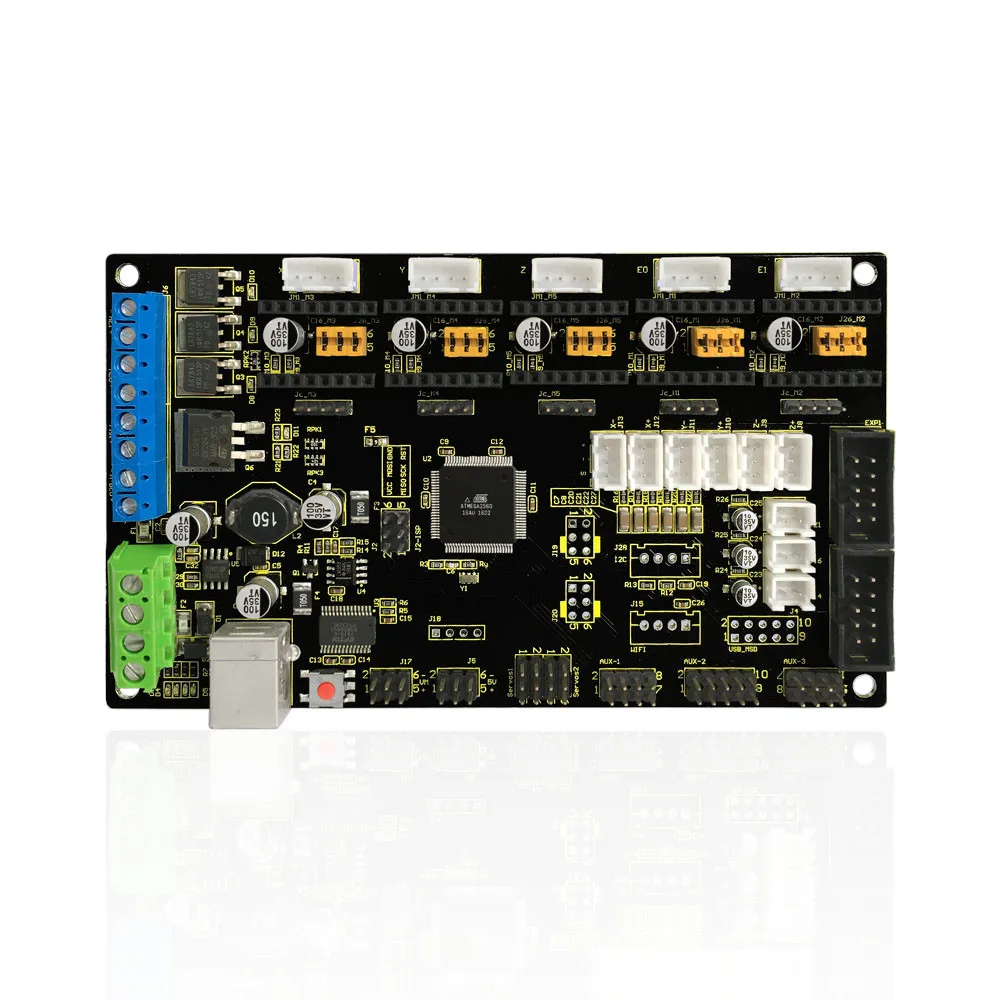

The new MKS GEN 1.2 3D Printer Controller board combines and improves the assets of the RAMPS 1.4
and Aduino Mega 2560 boards on a fantastic single board solution. The MKS GEN1.2 is an optimal 3D  printer controller solution for your Reprap 3D Printer.



Features



The MKS GEN V1.2 solves interface connection problems between the Aduino Mega 2560 and RAMPS 1.4  boards  by having both integrated into a single board .


5 Stepper Motor Driver Slots. The boards supports a wide variety of Stepper Motor Drivers - most notably A4988,
8825 and Ice-Blue Stepper Motor drivers drive

The MKS GEN V1.2 board uses a high quality 4-layer PCB which optimizes heat dissipation

Firmware can use the same configuration as RAMPS 1.4

Easy DISPLAY + SD-CARD connector - compatible pin header on board for 2864 & 2004 LCD Display controller panels.

6x end stop connectors with power supply Xmin/Xmax/Ymin/Ymax/Zmin/Zmax

3 x 5V output, 3 x 12V output interface

Reserve motor pulse and direction output port

Support 12V-24V power input

Shipping  list:
MKS GEN V1.2   x1                 USB cable           x1
