Keyestudio Desktop Smart Robot Car Kit for Arduino Robot Education Programming+3Projects+User Manual+PDF(online)

    Please select the information you wantX
(310 available)
Shipping Cost:
Estimated Delivery Time:
Please select the country you want to ship from
  • Description
  • Reviews



ks0159 (10)ks0159 (5)ks0159 (7)ks0159 (12)

ks0159 (6)ks0159 (9)



Multi-functional smart car is a learning application development system of microcontroller that can be controlled by MCU. It has functions of line tracking, obstacle avoidance, Bluetoot h remote control etc. This kit contains many interesting programs. It can also be expanded to have external circuit modules to have other functions. This kit is designed to help you interestingly learn Aduino. You can learn MCU development ability while having fun.


  • Motor parameters: Voltage: 1.5 -12V; shaft length: 10mm; Revolving speed: 6.0V 100rpm/min.
  • Use L298P driver module for motor control.

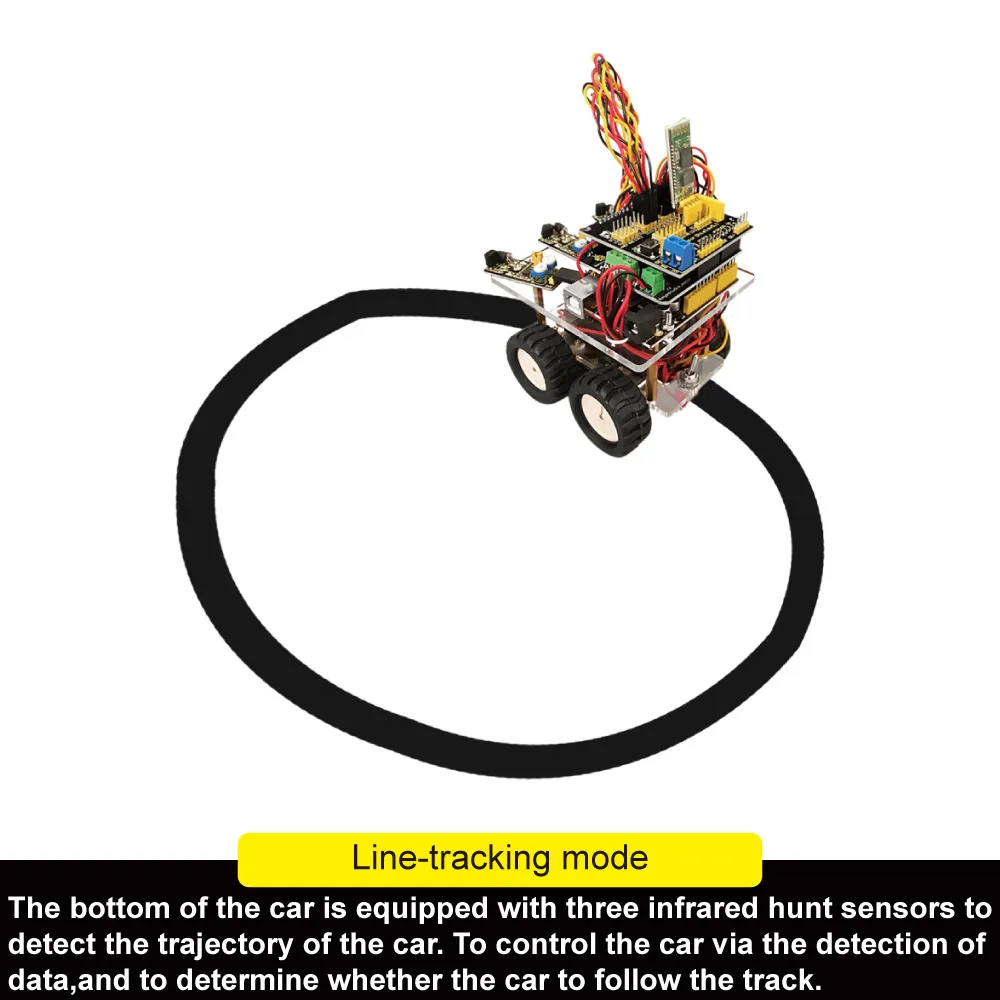

  • Three-channel line tracking modules, detecting black and white line, high precision, can also be used in fall prevention.

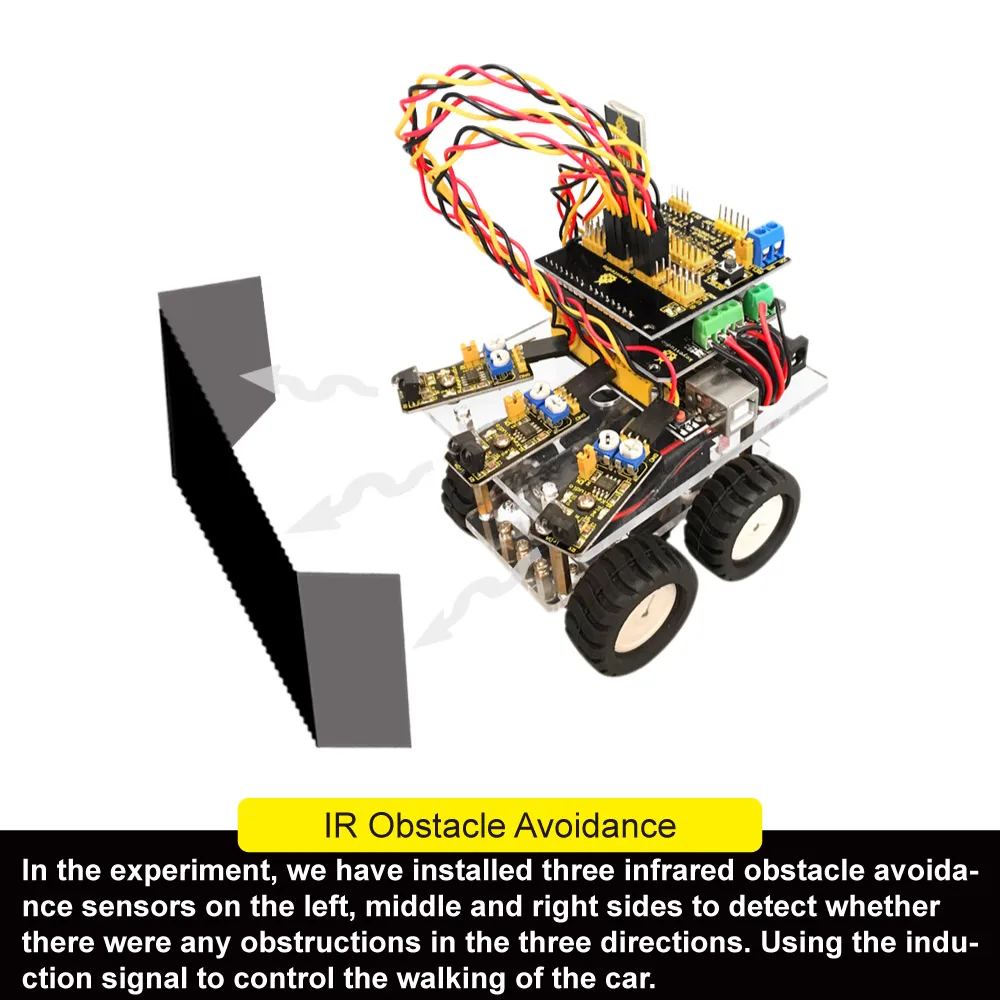

  • Three-channel infrared obstacle avoidance modules makes up the obstacle avoidance sensor, can detect whether there are obstacles ahead.

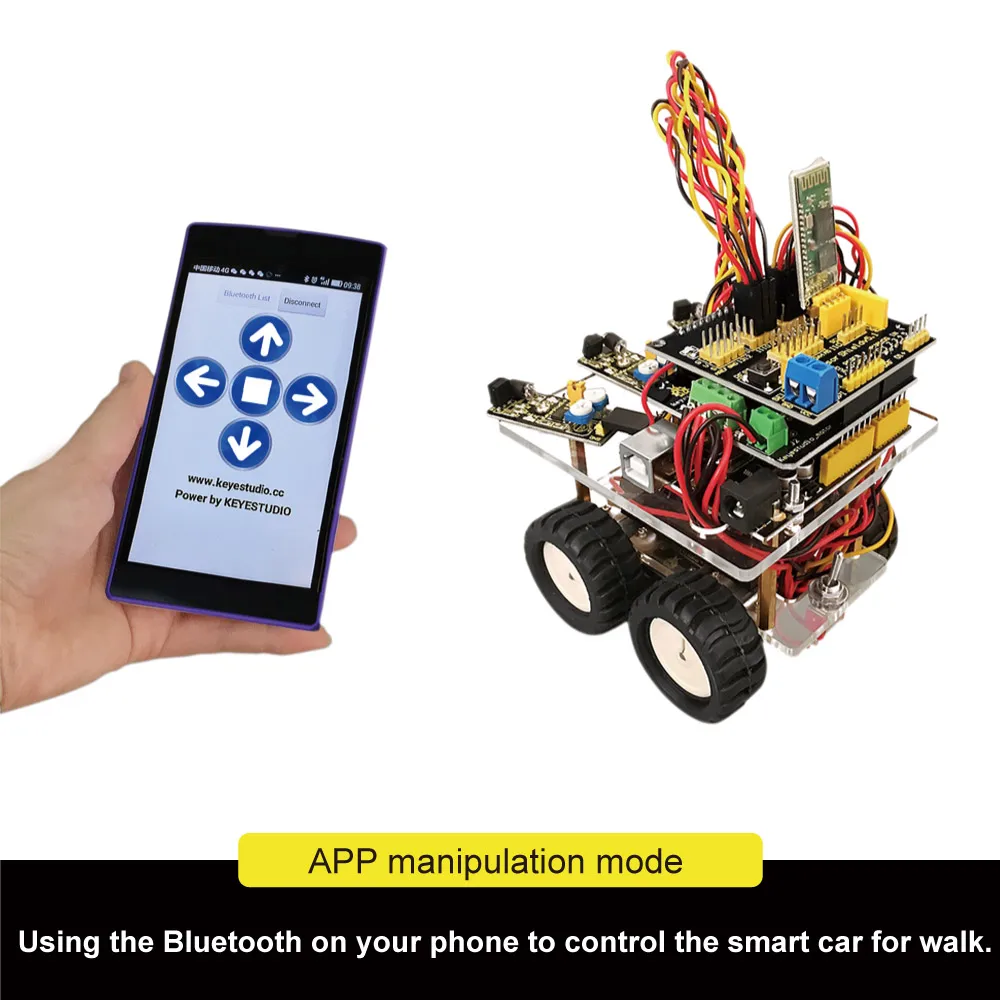

  • Equipped with Bluetoot h wireless module, can remotely control the robot after pairing with mobile phone Bluetoot h.
  • Can be connected to external 7 ~ 12V power supply; with various sensor modules, it can realize various functions.



PDF:   https://drive.google.com/open?id=1PwP_RzB-fLwKRp9rg10dSI5NUhnJv5mv


APP of Bluetoot h control: https://drive.google.com/open?id=1LMiMd4W16ScNjj7DgO5YVra4Rhph6s6k


All Codes : https://drive.google.com/open?id=1o3o0ybQkEKBMWxpE0BpV7AMMYUce98Tk




Shipping list:
  1. N20 metal gear motor * 4
  2. High quality tire * 4
  3. Motor holder *4
  4. Car chassis * 2
  5. L298P  motor driver shield * 1
  6.  UNO328 board * 1
  7.  sensor shield * 1
  8. Infrared obstacle avoidance module *3
  9. Line tracking module *3
  10. HC-06 Bluetoot h module * 1
  11. Toggle switch * 1
  12. 14500 battery pack * 1
  13. 3PIN Dupont wires * 6
  14. 27MM Copper bush * 4
  15. 10MM Copper bush * 2
  16. 3MM screws and nuts * several


Due to the shipping reason,We'll ship the car in pieces, not an assembled set.and doesn't contain batteries.(battery type is 14500)
