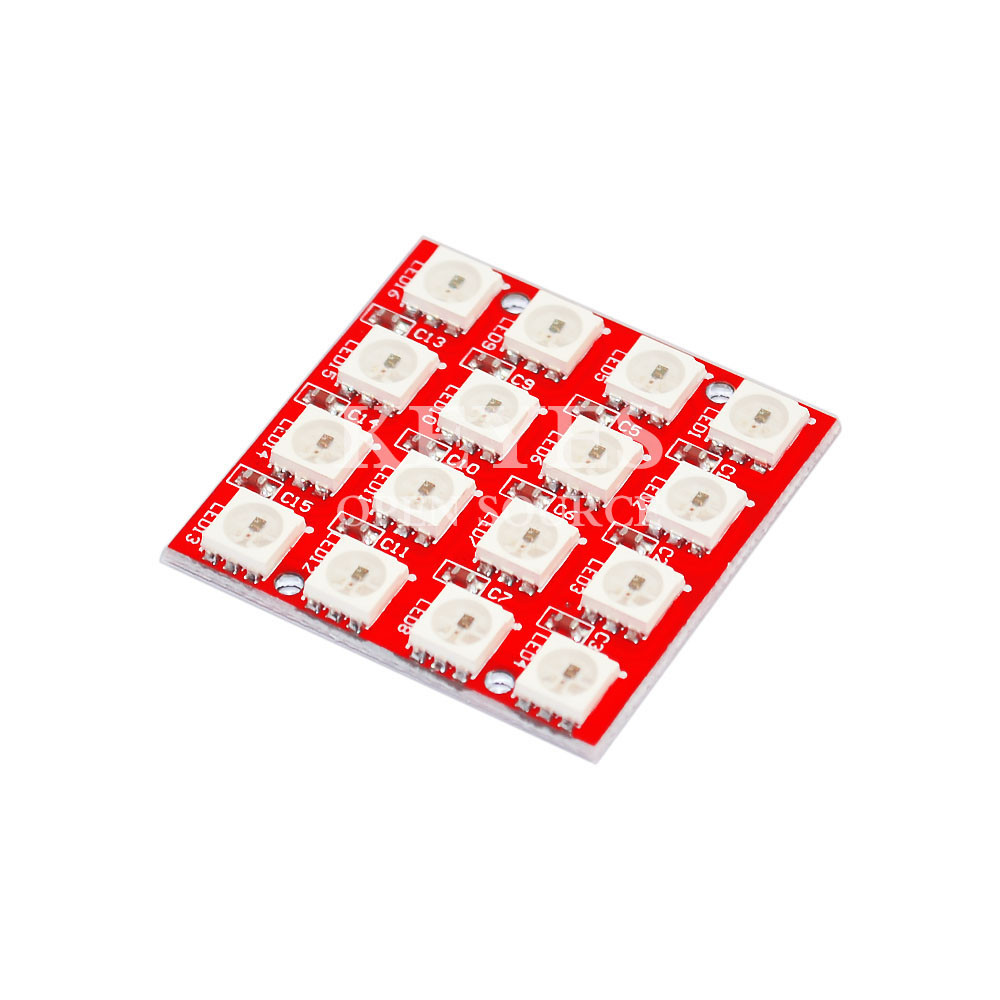

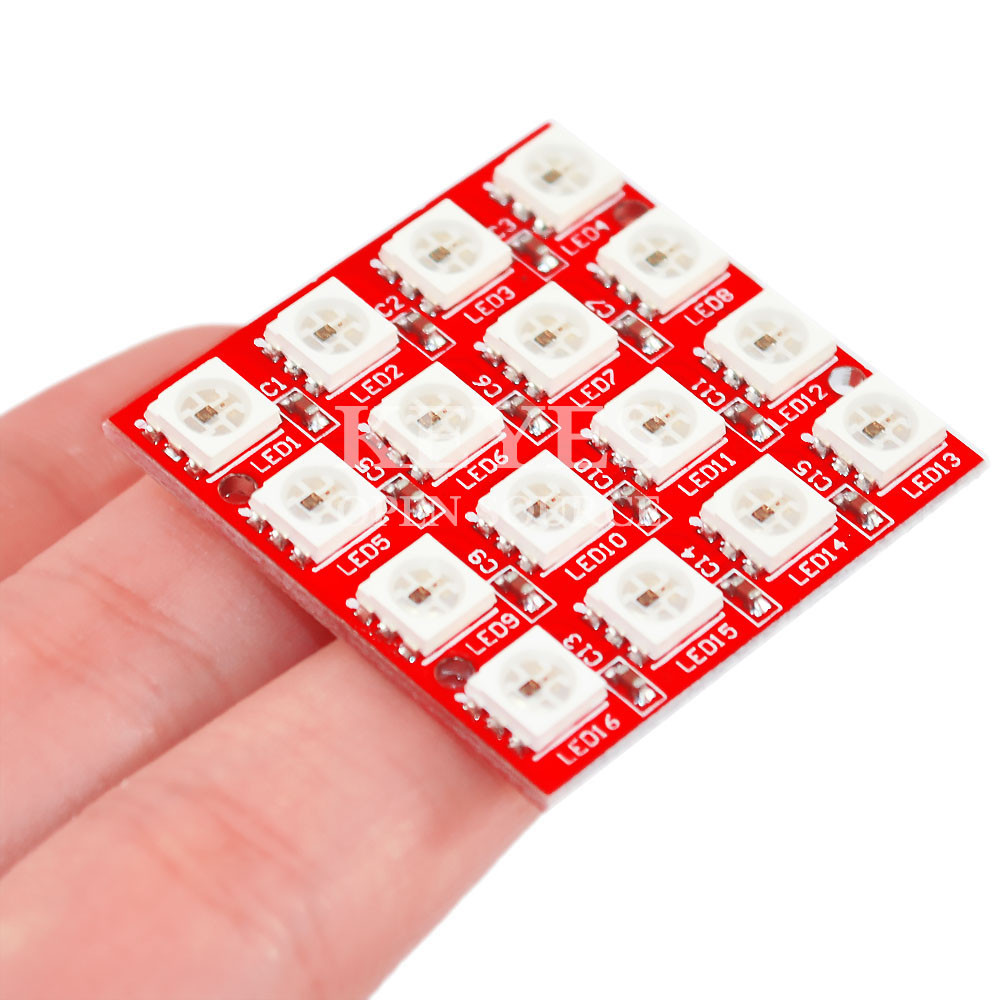

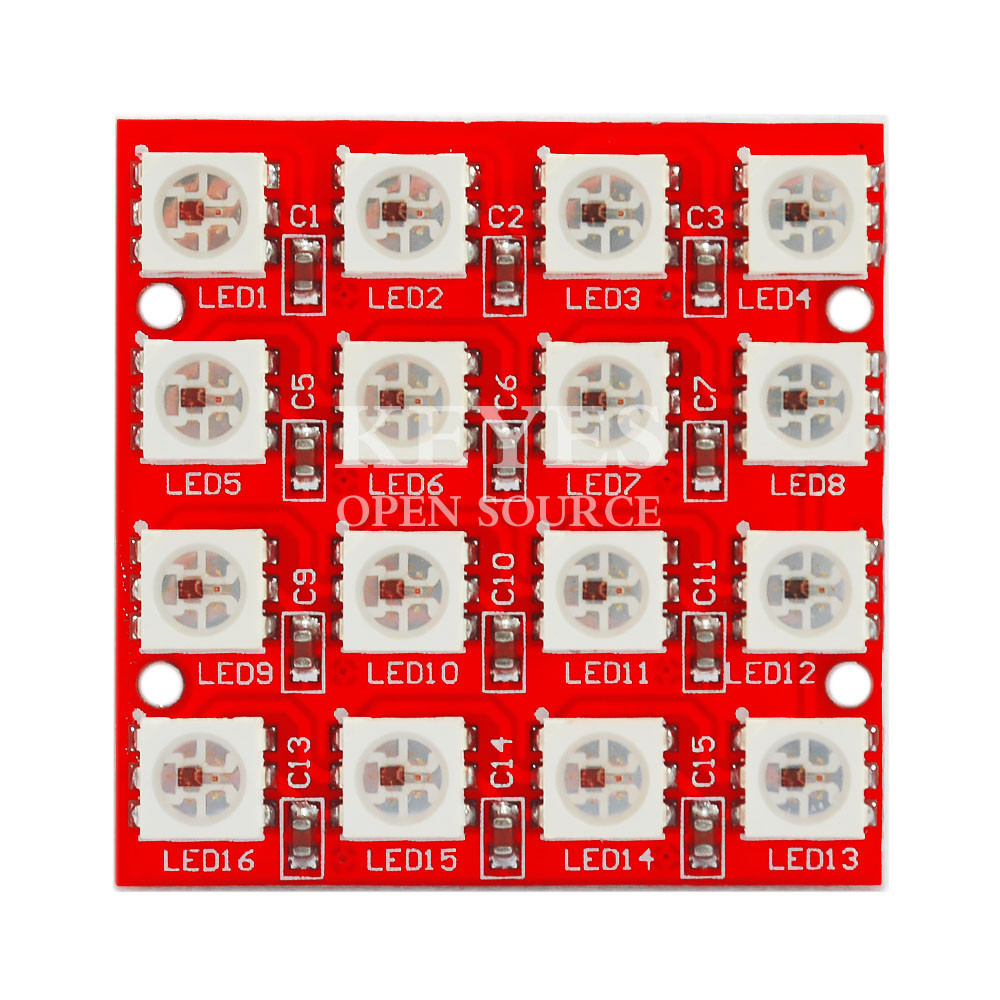

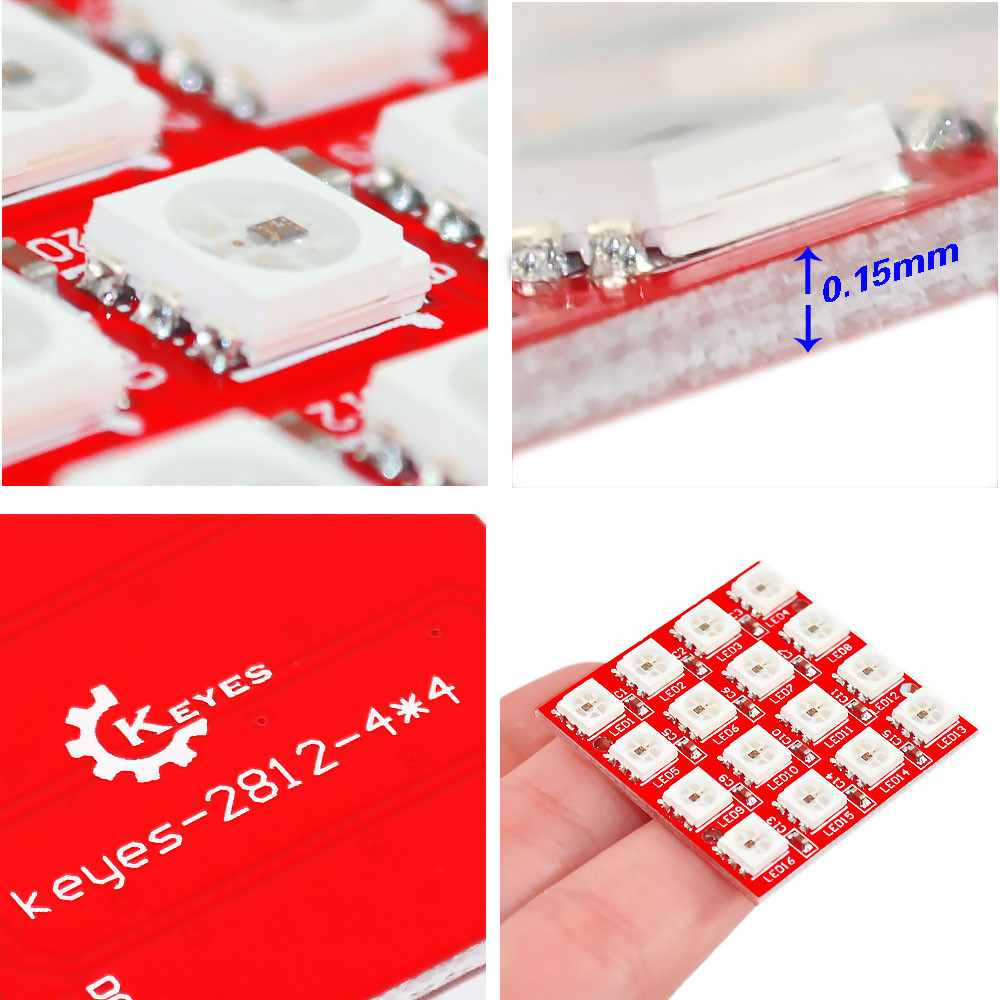

Free shipping! keyes 2812-4*4 bit full color RGB module/16 bit colorful module

    Please select the information you wantX
(296 available)
Shipping Cost:
Estimated Delivery Time:
Please select the country you want to ship from
  • Description
  • Reviews


4-4 (1)4-4 (2)4-4 (6)4-4 (3)4-4 (5)


This product is an intelligent externally controlled LED light source. The shape of  each LED is the same with a 5050LED light bead and each component acts a pixel.  The pixel contains high-precision internal oscillator and 12V high voltage  programmable constant current control segment, which ensures the color  consistance of pixel light.
  • The brightness of built-in IC light bead is higher than regular light bead.
  • The consistance of RGB tri-color chip in all beads is very high
  • The built-in drive IC is of stable performance
Main features of individual LED:
  • Intelligent anti reverse connection protection, the reverse connection of power wouldn't damage internal IC of LED;
  • IC control circuit and LED ligght source share the same power source;
  • Carries built-in signal shaping circuit;
  • Carries built-in power-on reset and power-out reset;
  • The tri-color of each pixel can realise 256 level brightness display, it is able to display 16777216 kinds of color, and the scan frequency is no lower than 400Hz/s;
  • Serial cascade interface, wich can realize data transceiver and decoding via only one signal cable;
  • When refreshing rate is 30frame/s, the cascade number is not lower than 1024 point;
  • The data transmission speed can reach up to 800Kbps;

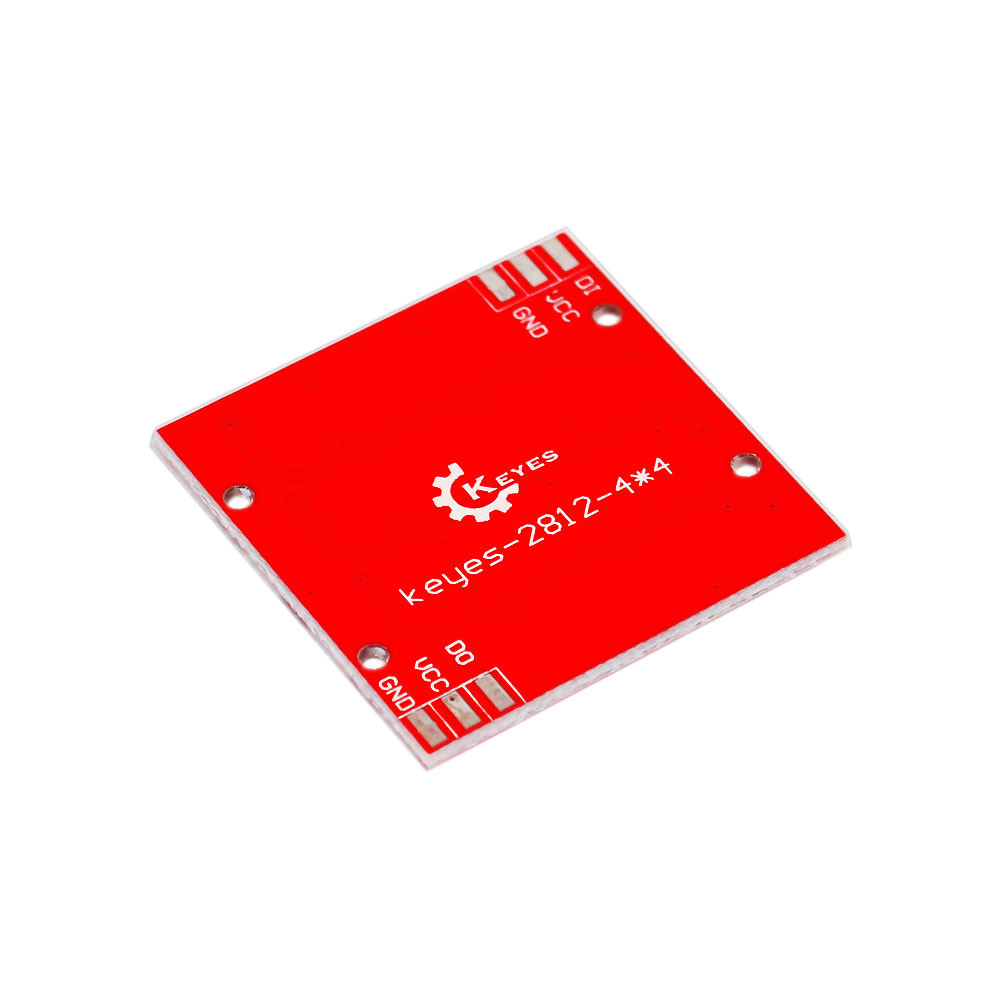

Connection ports:
  • VCC: connect to DC5V
  • G: connect to GND
  • DI: connect to data input
  • DO: connect to data output
Product size: 32.5*32.5*3(mm)
KY---- 222
