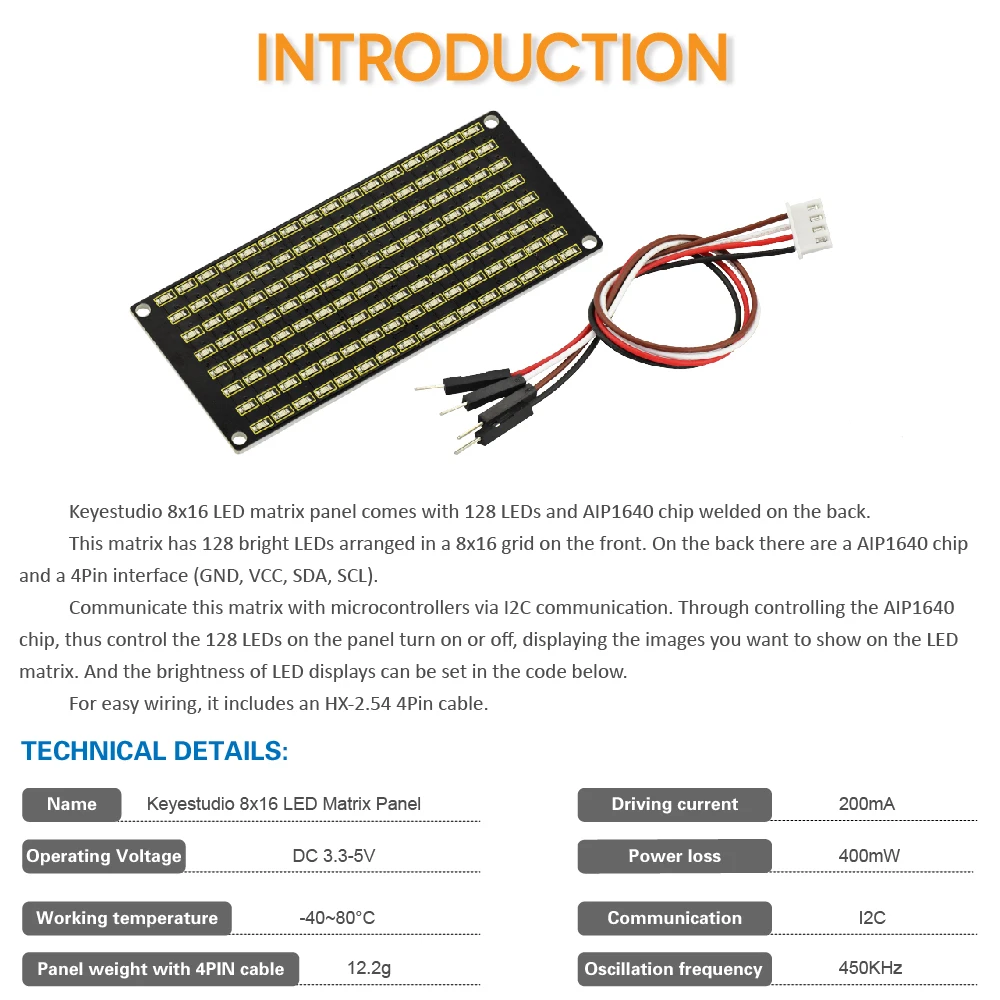

Keyestudio 8x16 LED matrix panel comes with 128 LEDs andAIP1640 chip welded on the back.

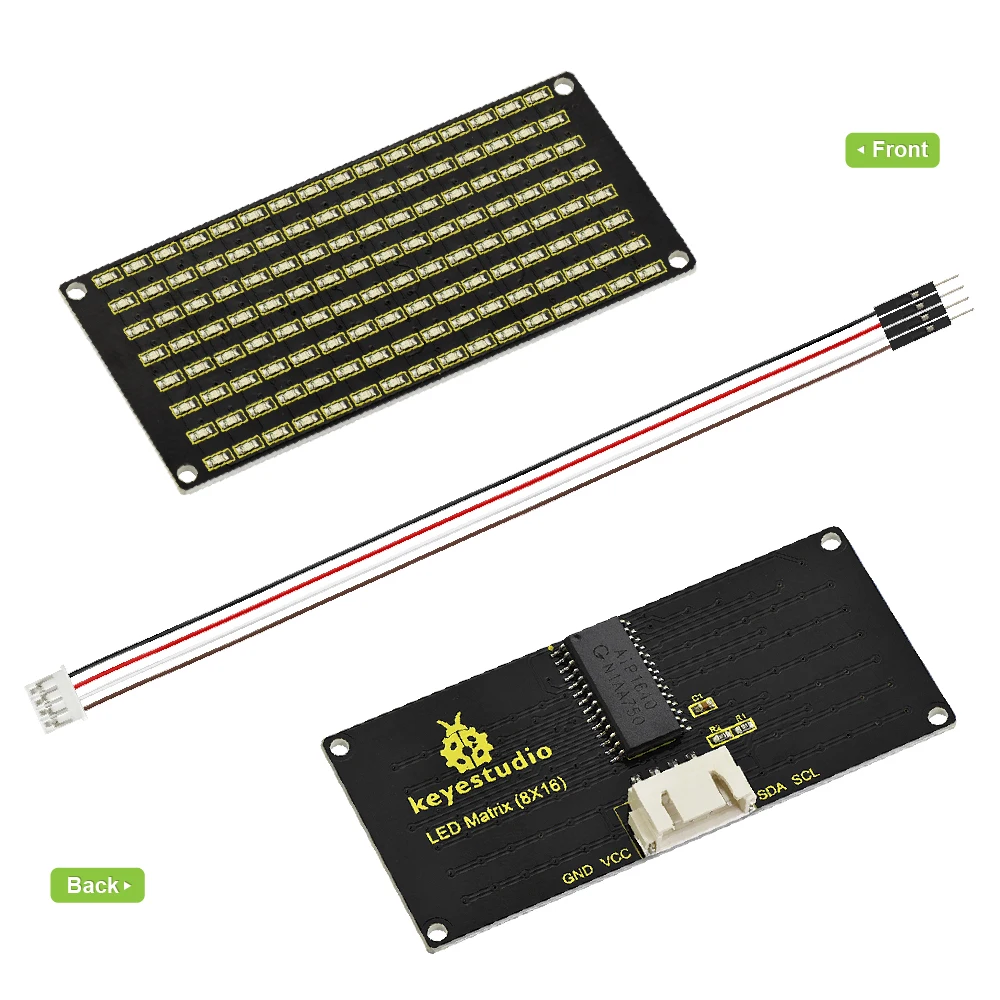

This matrix has 128 bright LEDs arranged in a 8x16 grid on the front. On the back there are aAIP1640 chip and a 4Pin interface (GND, VCC, SDA, SCL).

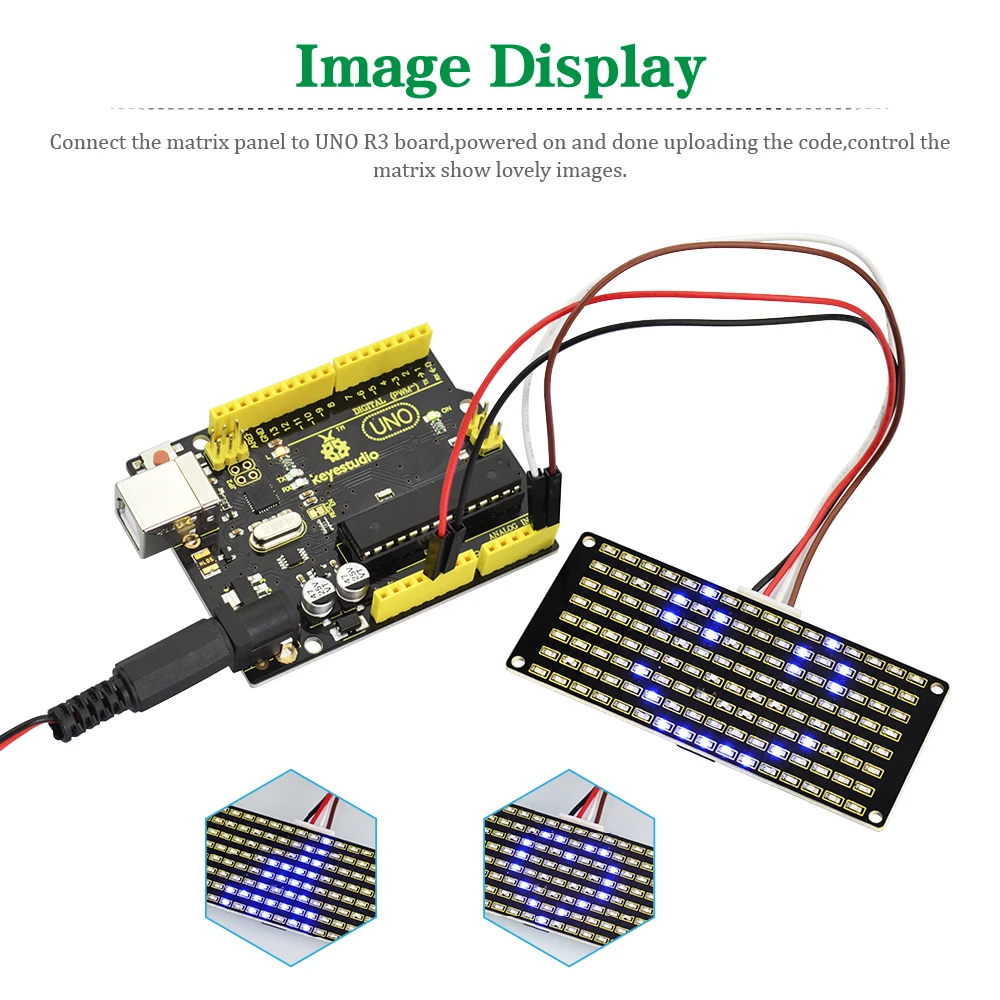

Communicate this matrix with microcontrollers via I2C communication. Through controlling the AIP1640 chip, thus control the 128 LEDs on the panel turn on or off, displaying the images you want to show on the LED matrix. And the brightness of LED displays can be set in the code below.

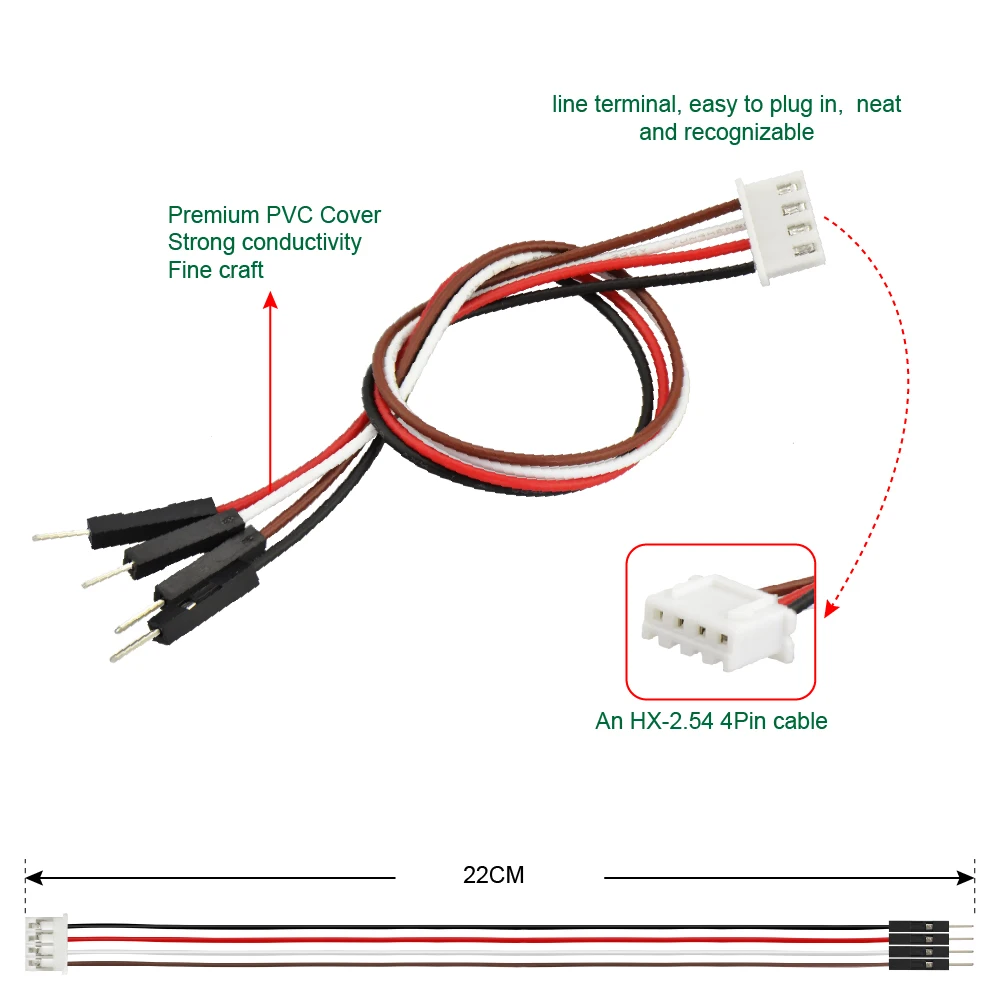

For easy wiring, it includes an HX-2.54 4Pin cable.
-

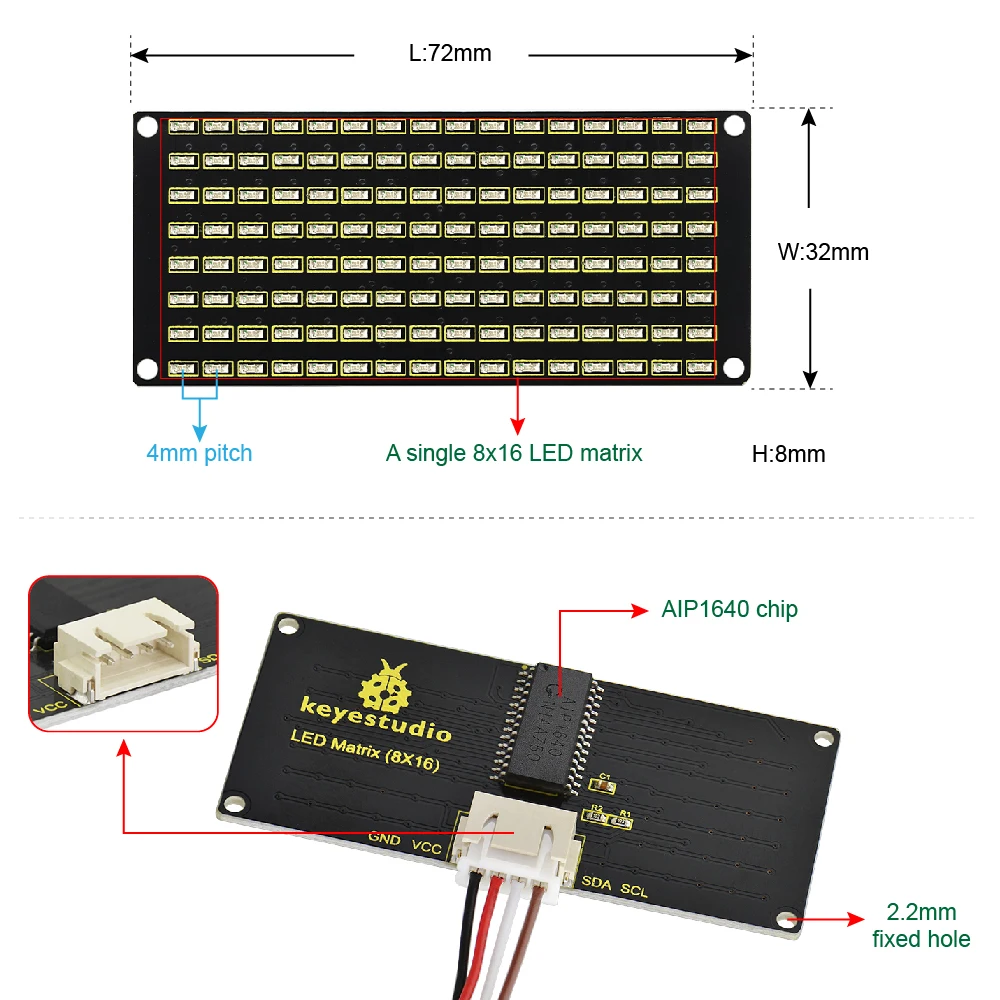

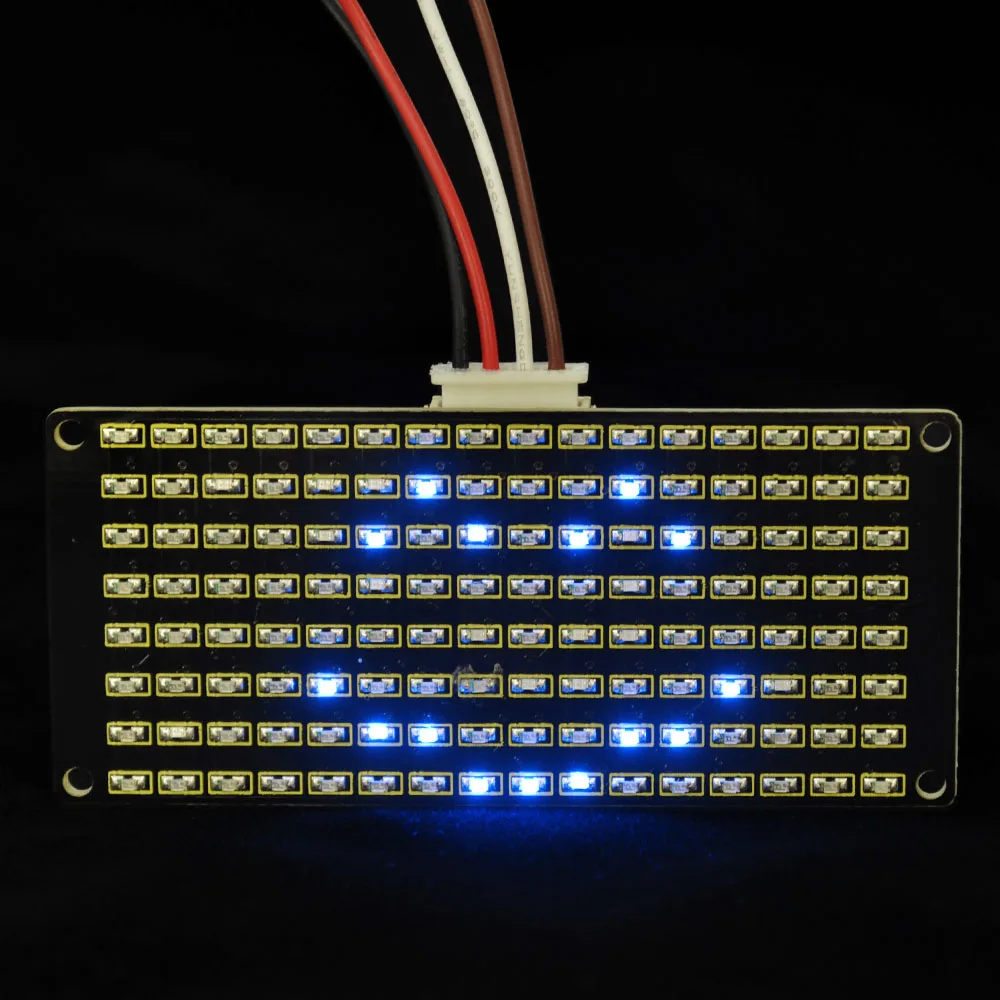

LEDs arranged in a 8x16 grid on the front
-

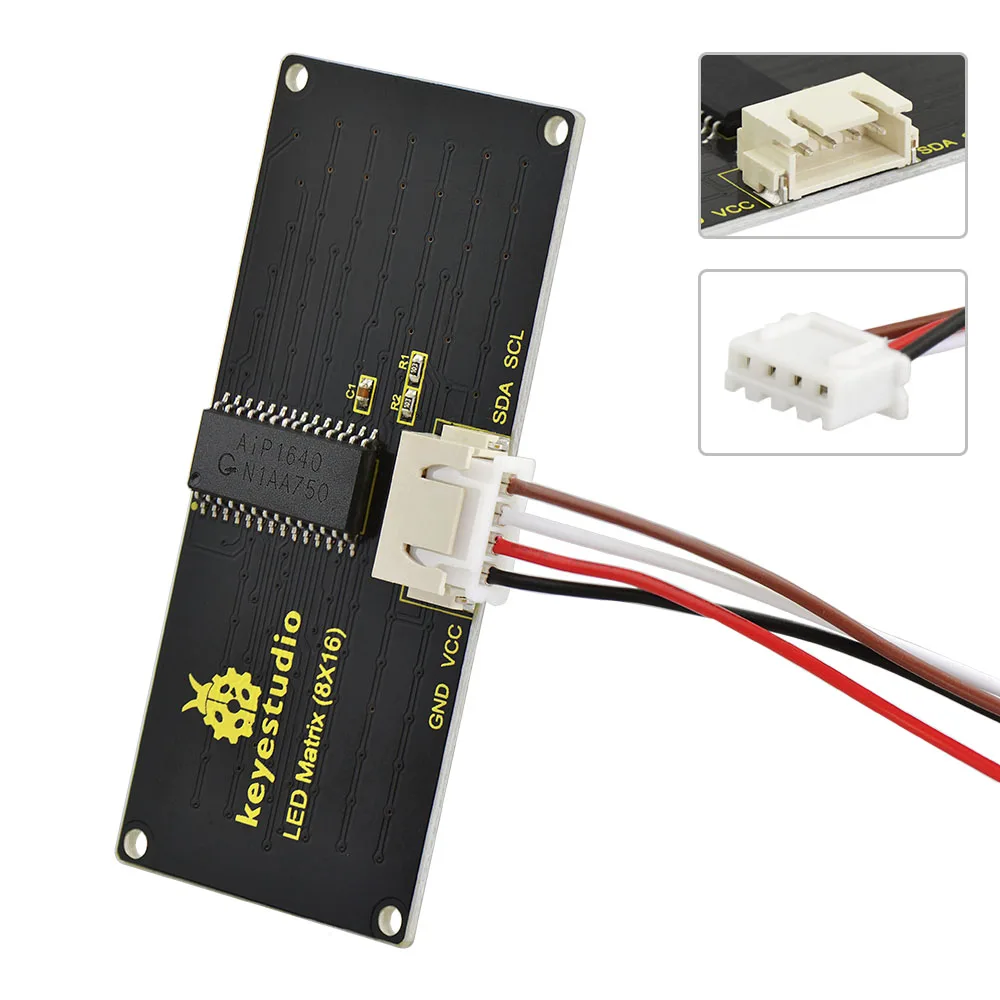

Be driven by AIP1640 chip welded on the back
-
Comes with a 4Pin interface
-
With four 2.2mm fixed holes, easy to mount it on other devices.
