Keyestudio RPI L298P Motor Drive Shield For Arduino/Raspberry Pi

    Please select the information you wantX
(991 available)
Shipping Cost:
Estimated Delivery Time:
Please select the country you want to ship from
  • Description
  • Reviews

KS0218~1000 (1)KS0218~1000 (6)KS0218~1000 (3)KS0218~1000 (7)KS0218~1000 (4)KS0218~1000 (2)

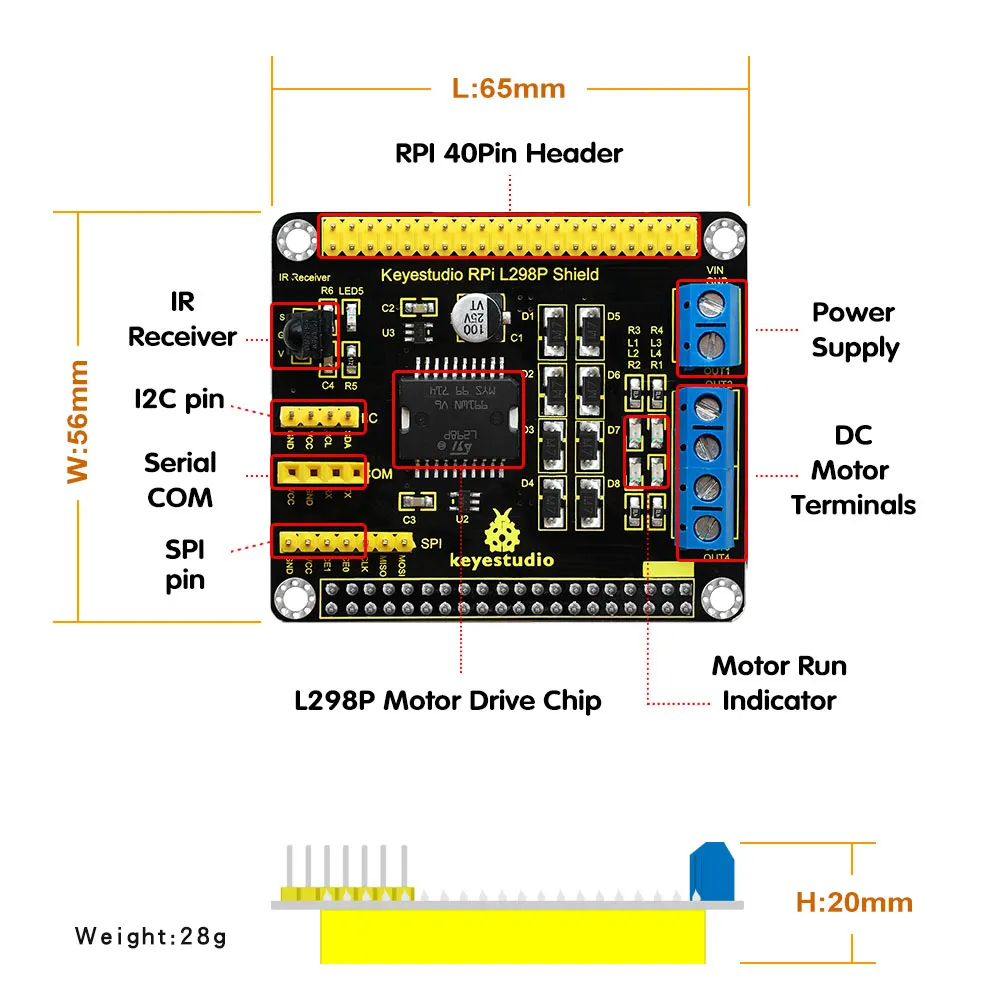

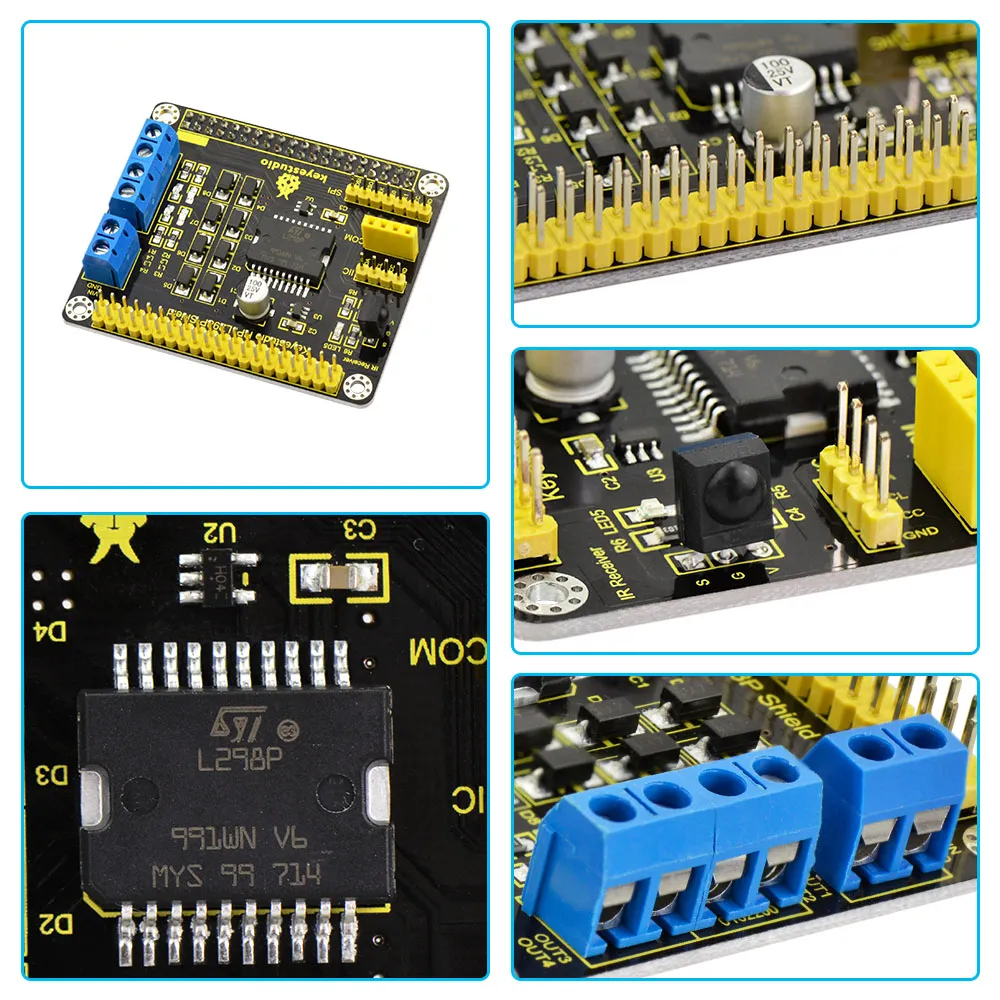

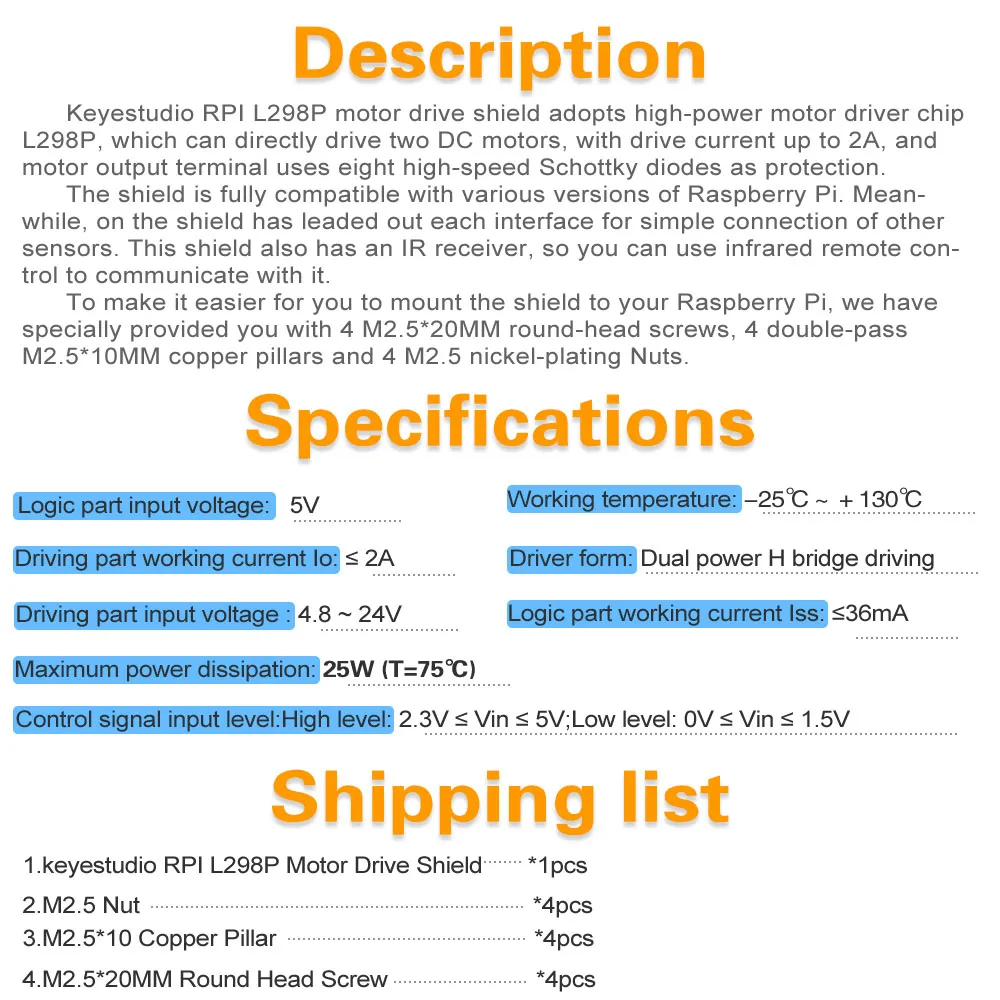

Keyestudio RPI L298P motor drive shield adopts high-power motor driver chip L298P, which can directly drive two DC motors, with drive current up to 2A, and motor output terminal uses eight high-speed Schottky diodes as protection.

The shield is fully compatible with various versions of Raspberry Pi. Meanwhile, on the shield has leaded out each interface for simple connection of other sensors. This shield also has an IR receiver, so you can use infrared remote control to communicate with it.

To make it easier for you to mount the shield to your Raspberry Pi, we have specially provided you with 4 M2.5*20MM round-head screws, 4 double-pass M2.5*10MM copper pillars and 4 M2.5 nickel-plating Nuts.


1. Logic part input voltage: 5V

2. Driving part input voltage: 4.8 ~ 24V

3. Logic part working current Iss: ≤36mA

4.Driving part working current Io: ≤ 2A

5. Maximum power dissipation: 25W (T=75℃)

6. Control signal input level:

High level: 2.3V ≤ Vin ≤ 5V

Low level: 0V ≤ Vin ≤ 1.5V

7. Working temperature: -25℃~+130℃

8. Driver form: Dual power H bridge driving

Wiring Diagram:

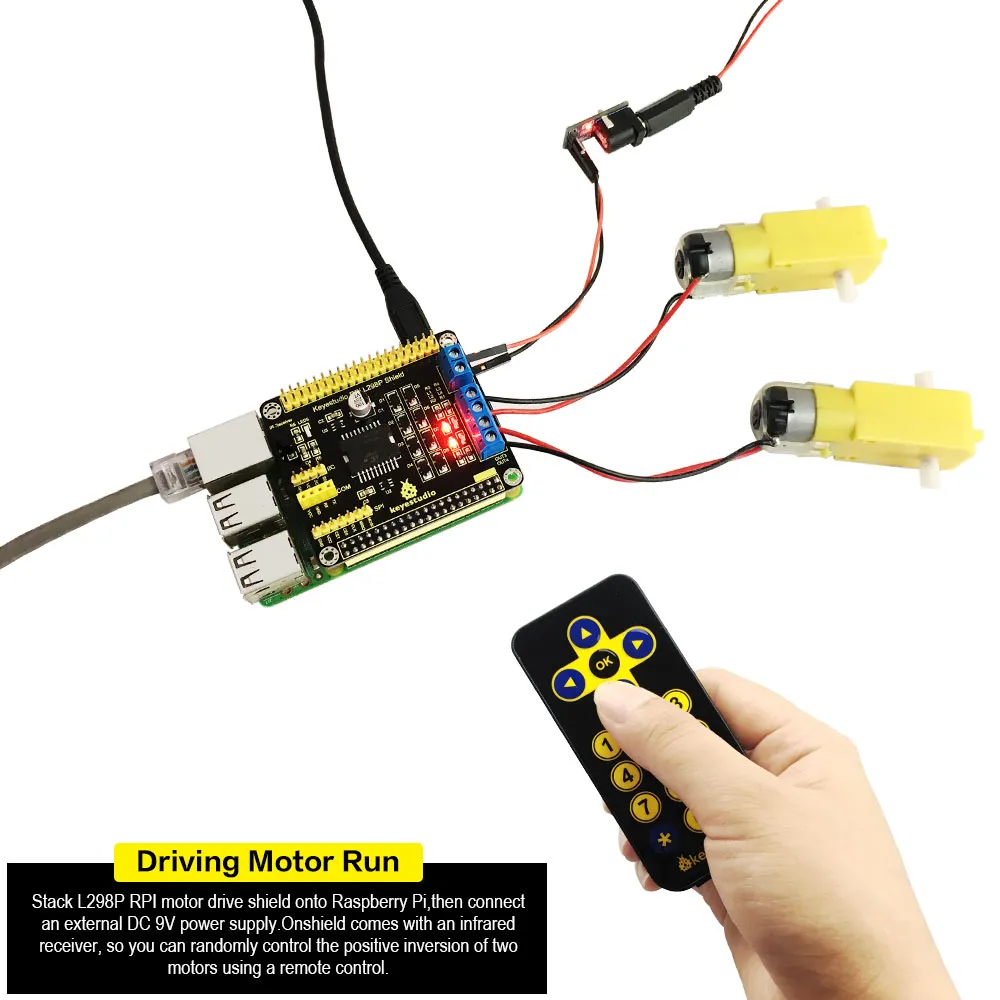

Connect the motors and batteries to the terminal block of RPI L298P shield.
