keyestudio TEMT6000 Light Module For BBC micro:bit

KS0421
Price:
Wholesale:
10+
$4.28
    Please select the information you wantX
Quantity:
-
+
(1200 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
  • Description
  • Reviews

KS0421 (2)KS0421 (6)KS0421 (4)KS0421 (1)KS0421 (3)

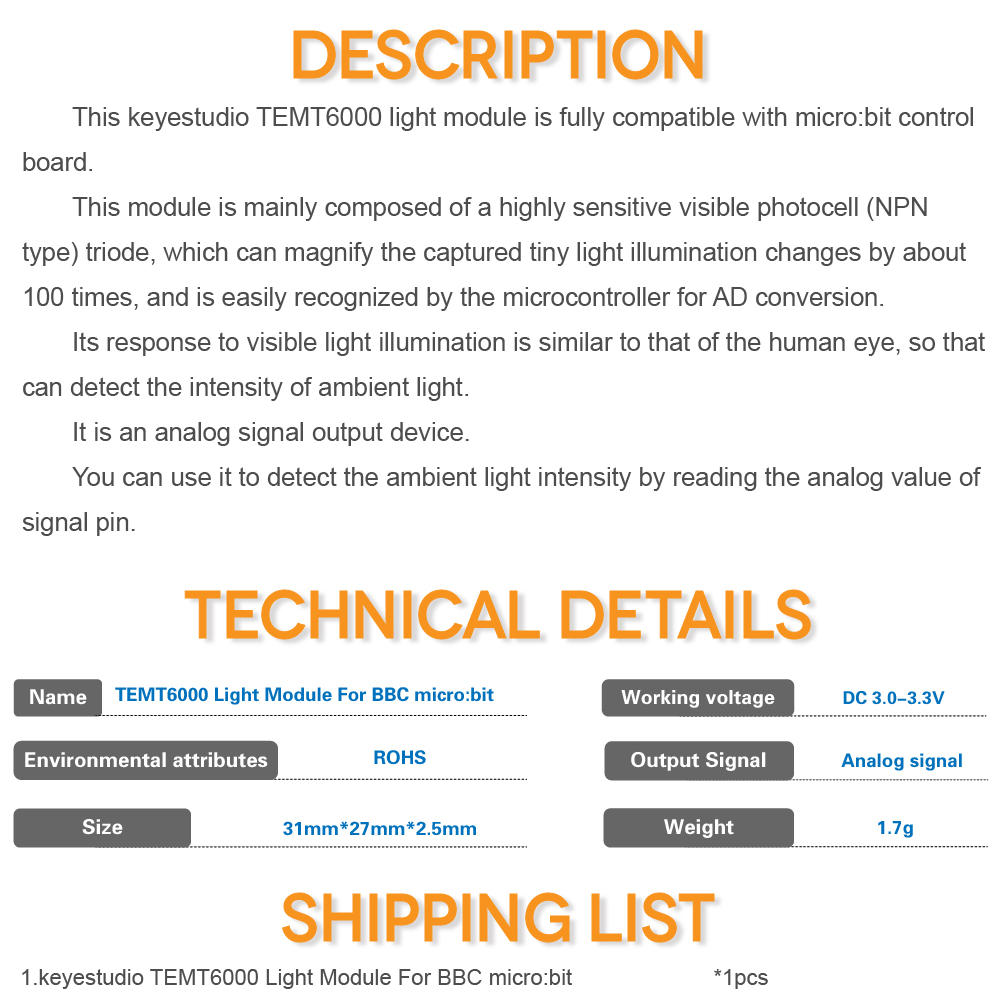

Description

This keyestudio TEMT6000 light module is fully compatible with micro:bit control board.

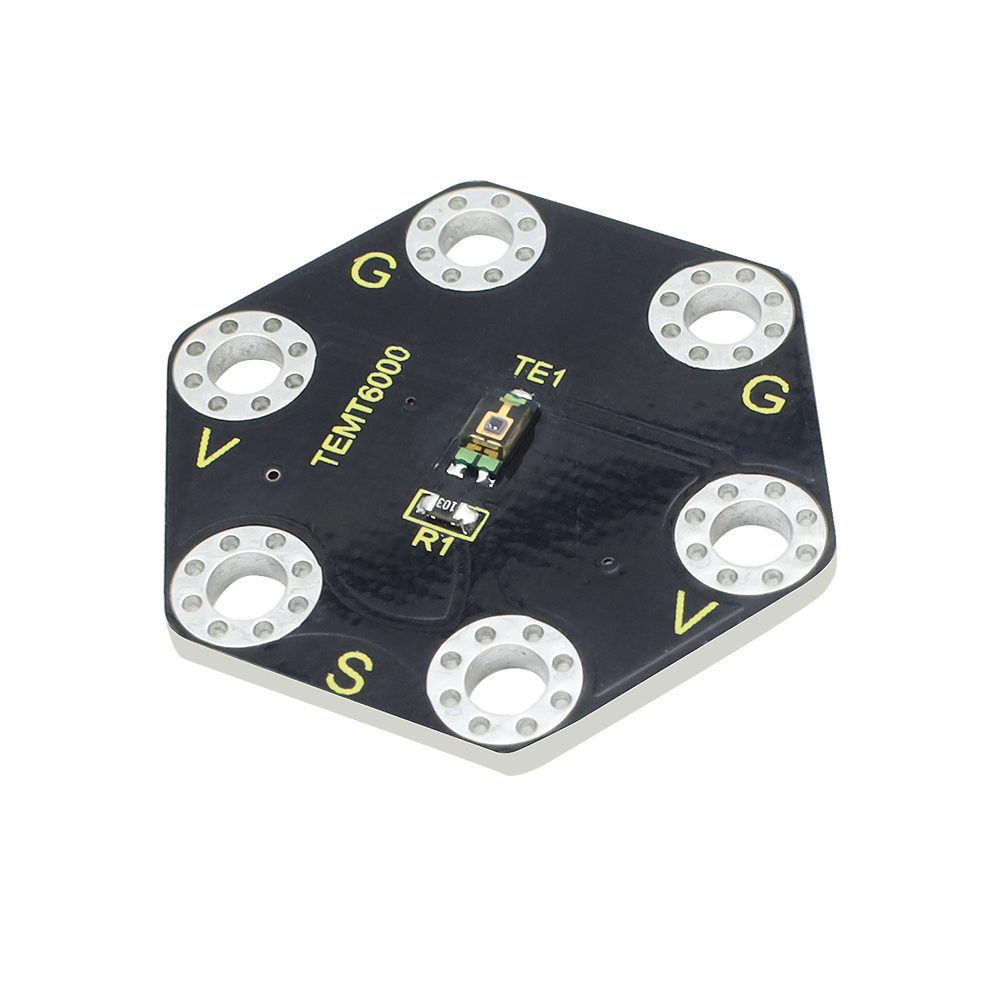

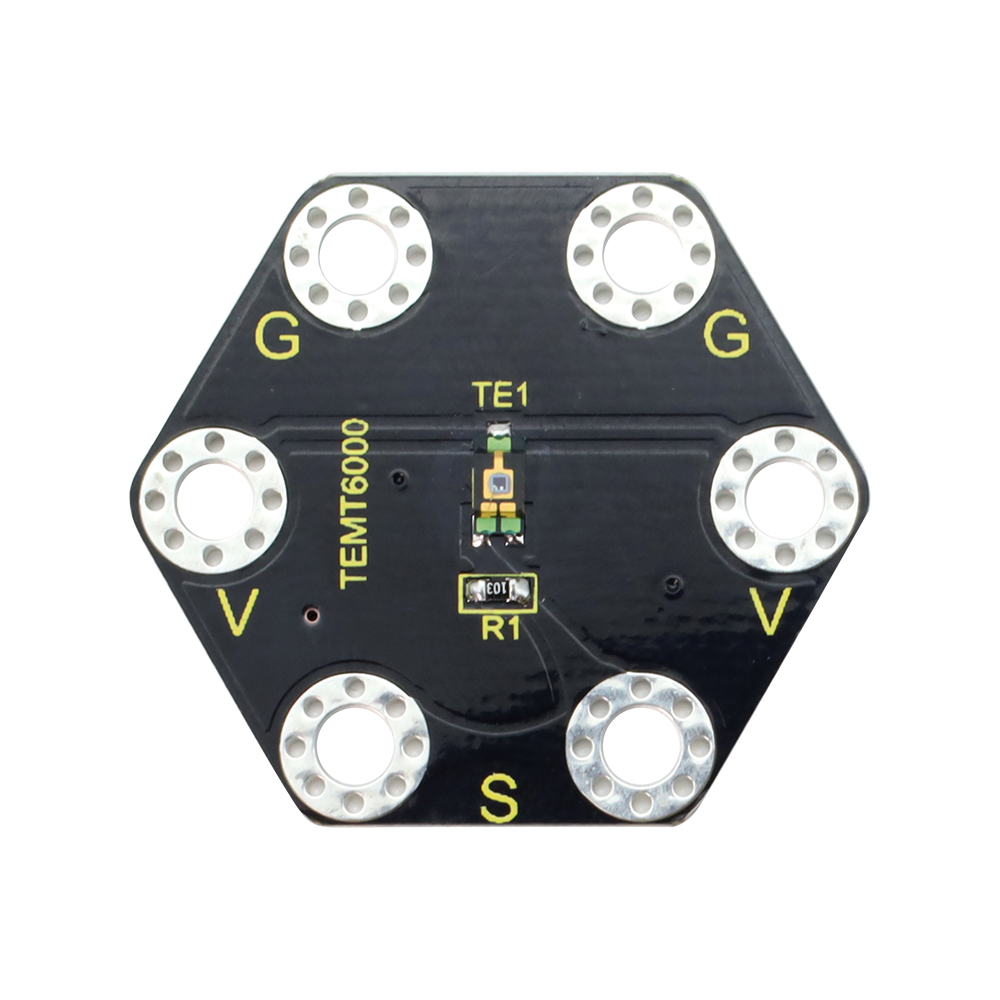

This module is mainly composed of a highly sensitive visible photocell (NPN type) triode, which can magnify the captured tiny light illumination changes by about 100 times, and is easily recognized by the microcontroller for AD conversion.

Its response to visible light illumination is similar to that of the human eye, so that can detect the intensity of ambient light.

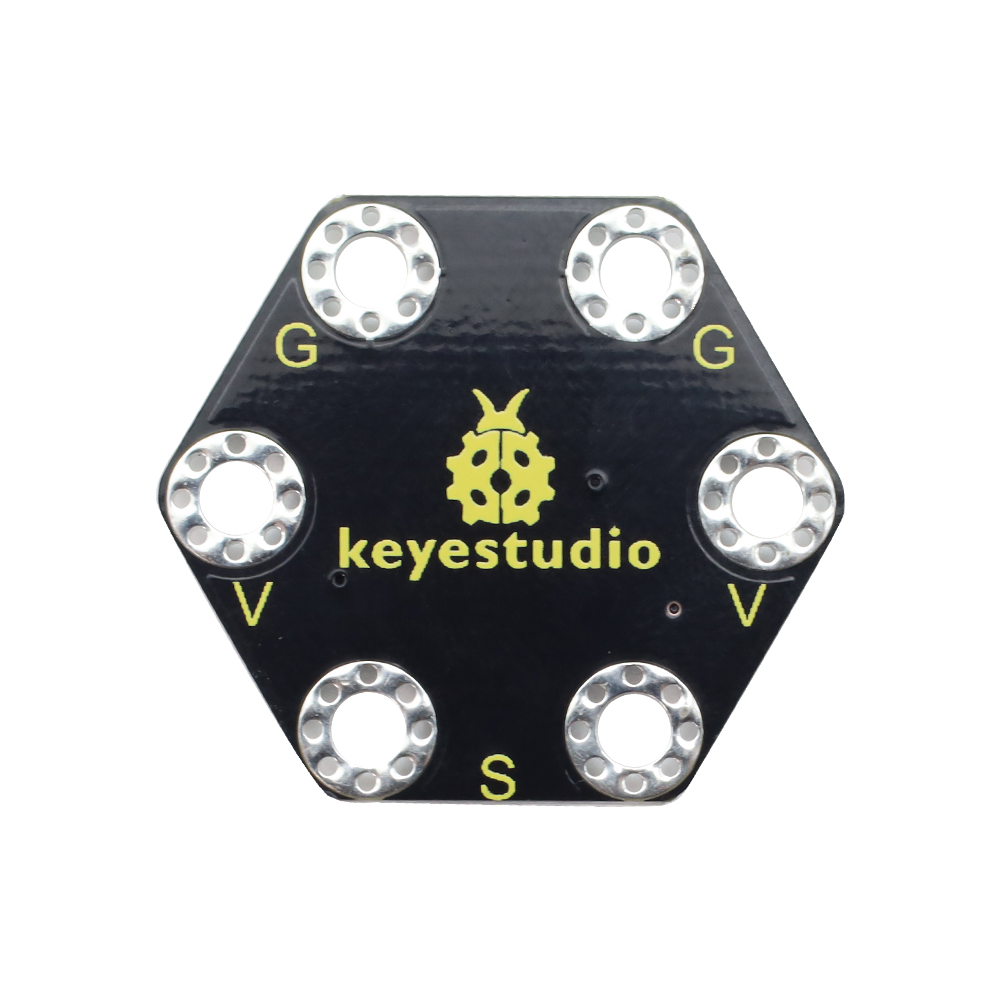

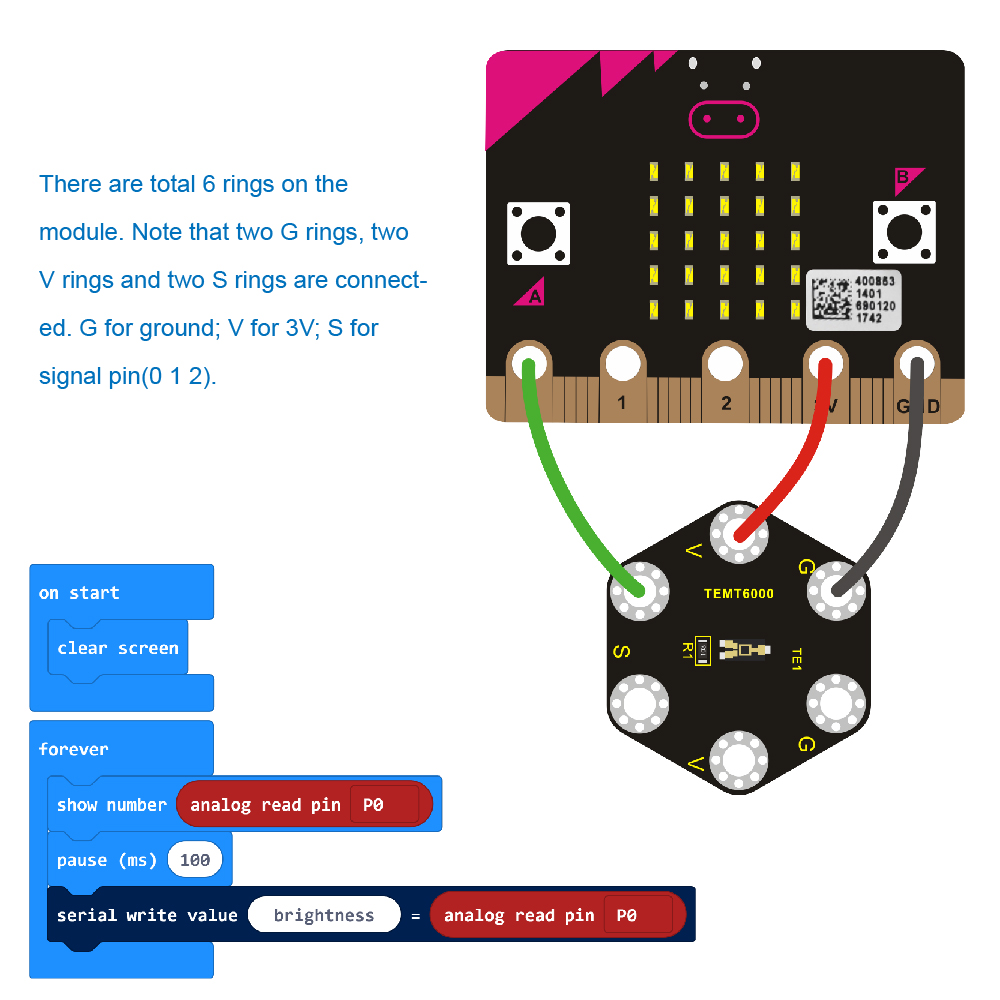

There are total 6 rings on the module. Note that two G rings, two V rings and two S rings are connected. G for ground; V for 3V; S for signal pin(0 1 2).

It is an analog signal output device.

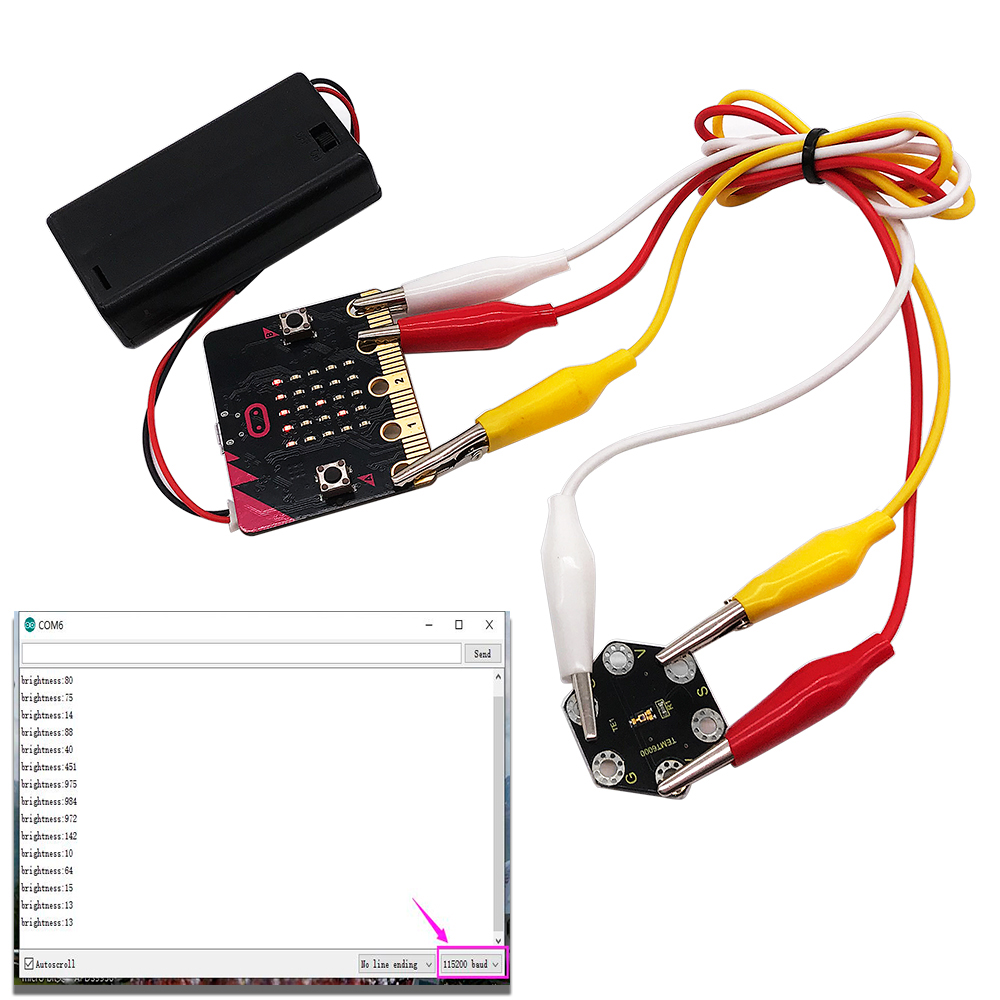

When using, connect the module to micro:bit control board using Crocodile clip line.

You can use it to detect the ambient light intensity by reading the analog value of signal pin.



Technical Parameters

Working voltage: DC 3.0-3.3V

Output Signal: Analog signal

Dimensions: 31mm*27mm*2.5mm

Weight: 1.7g

Environmental attributes: ROHS
