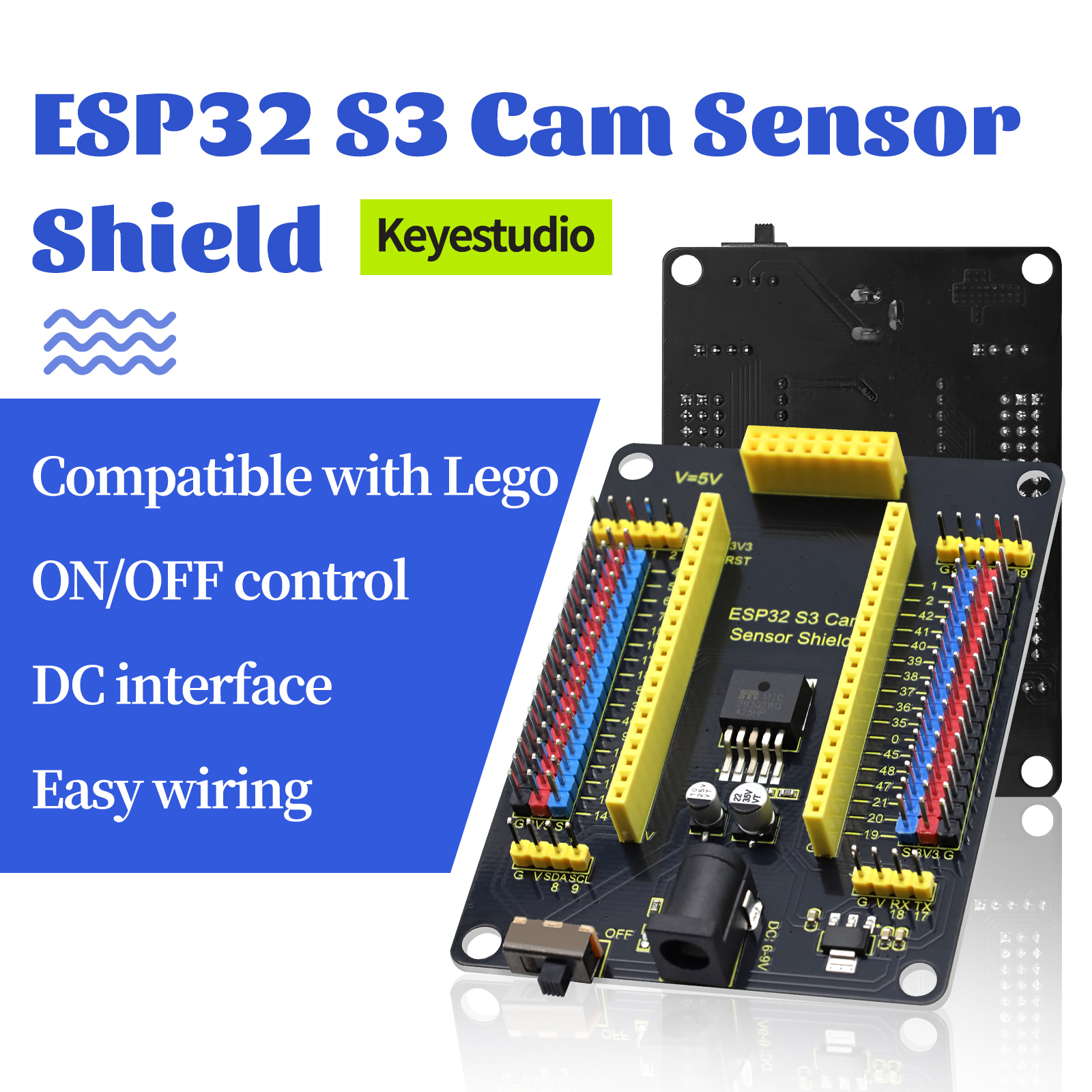

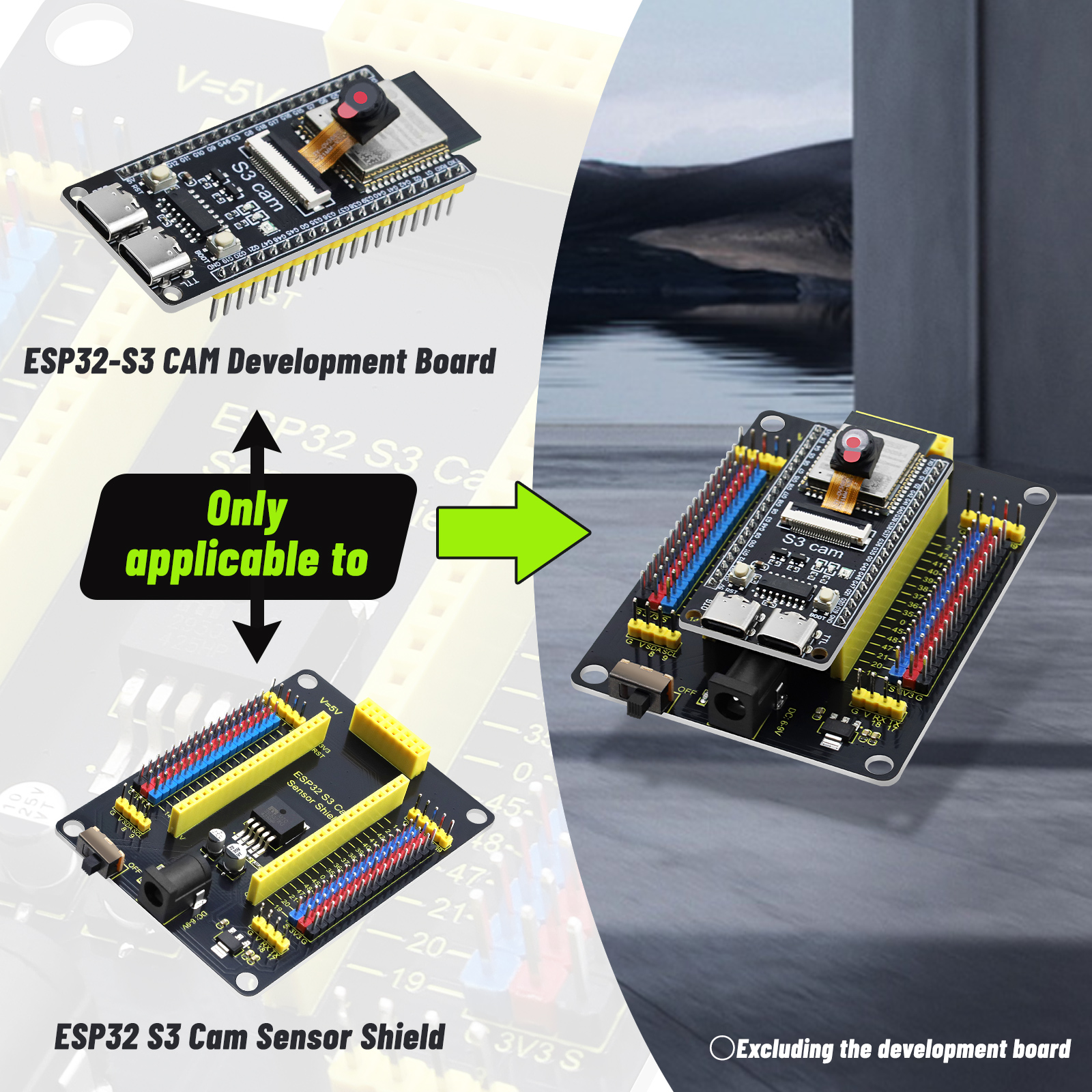

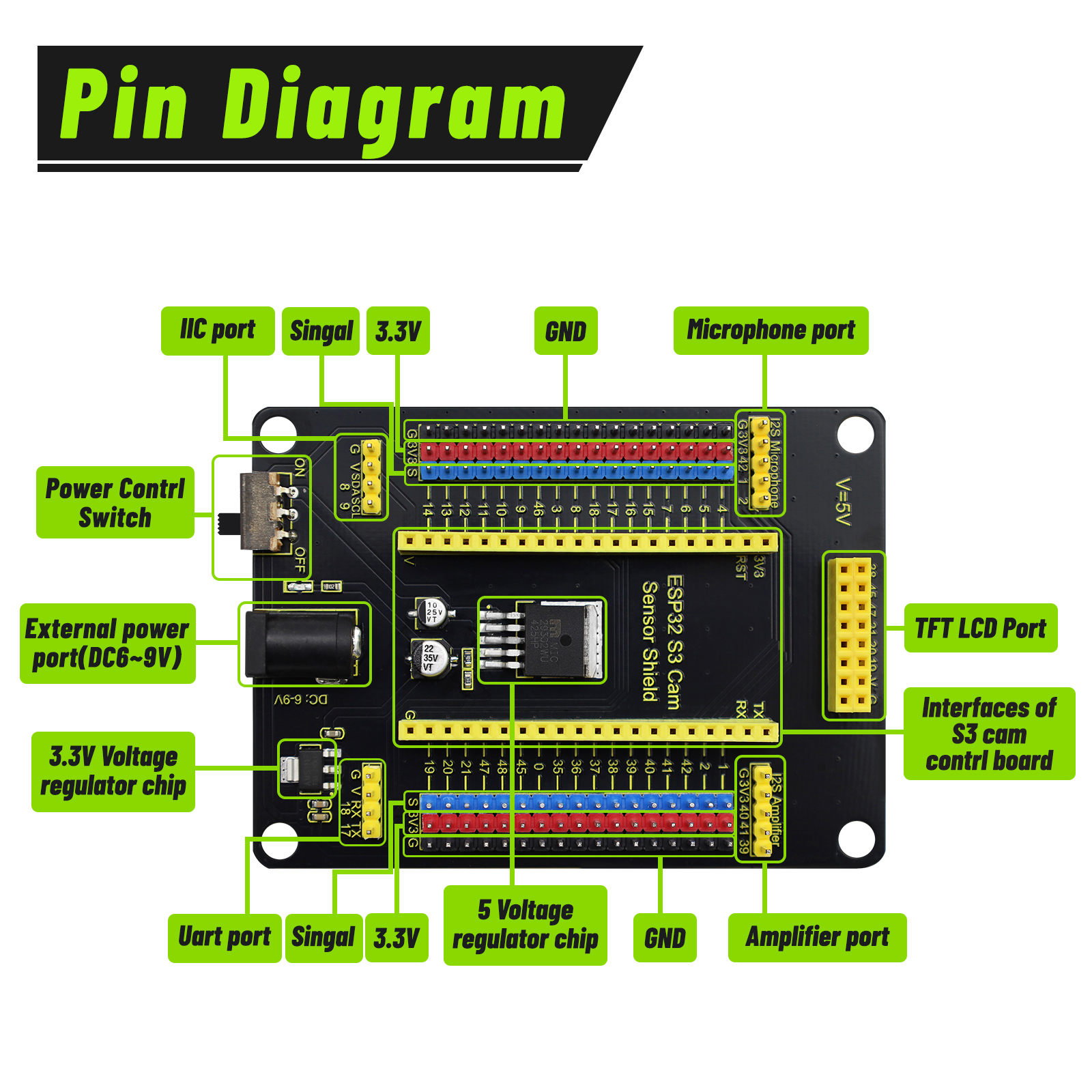

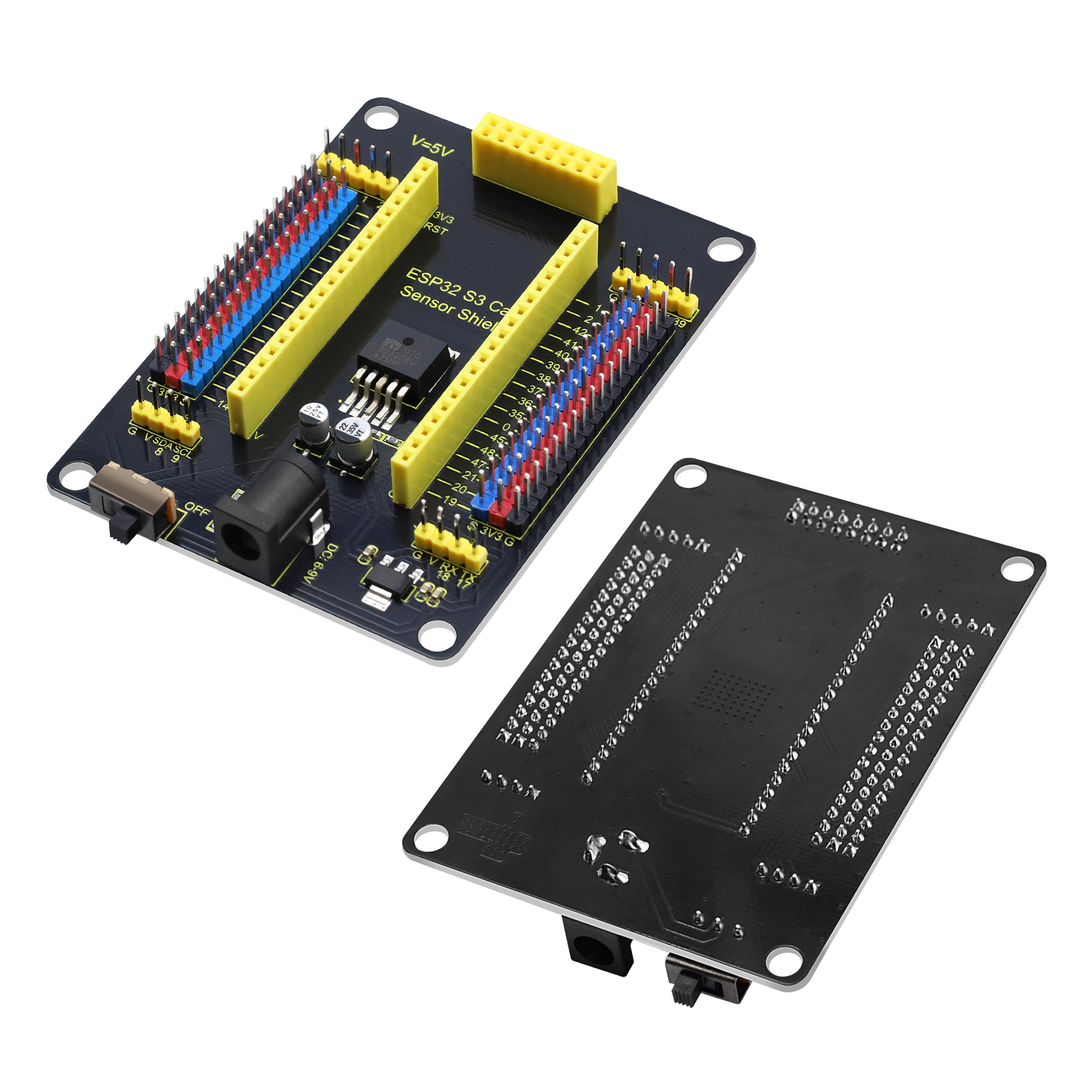

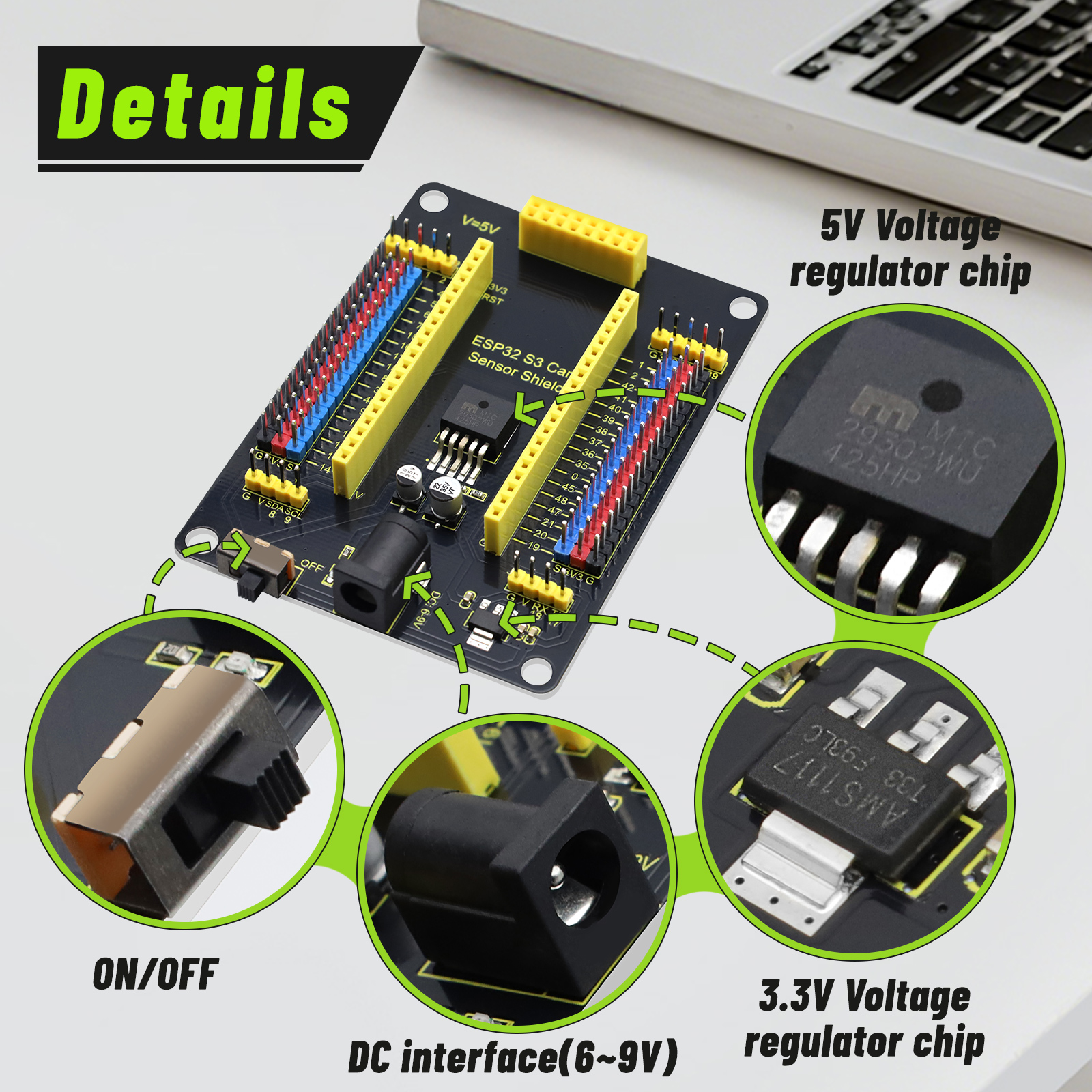

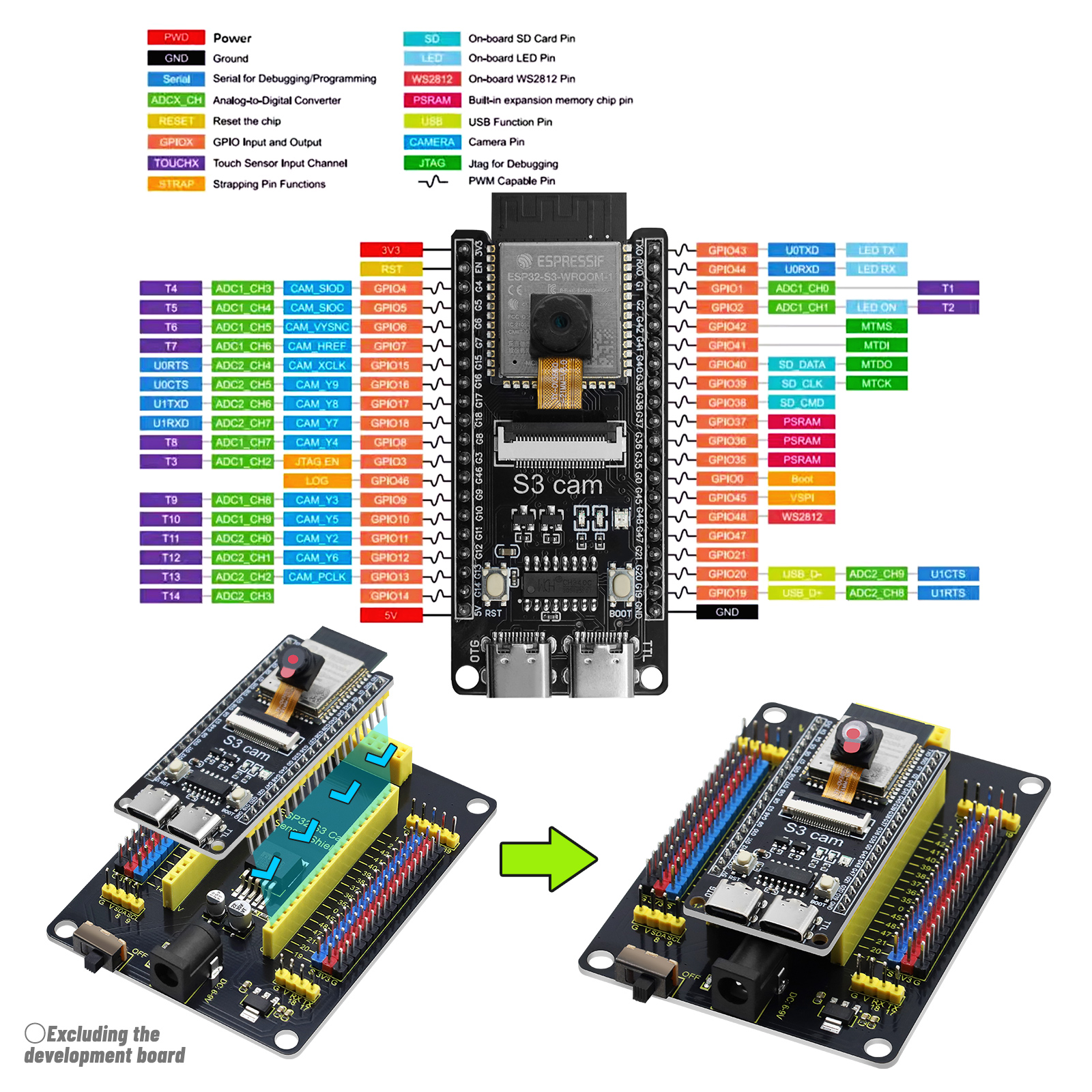

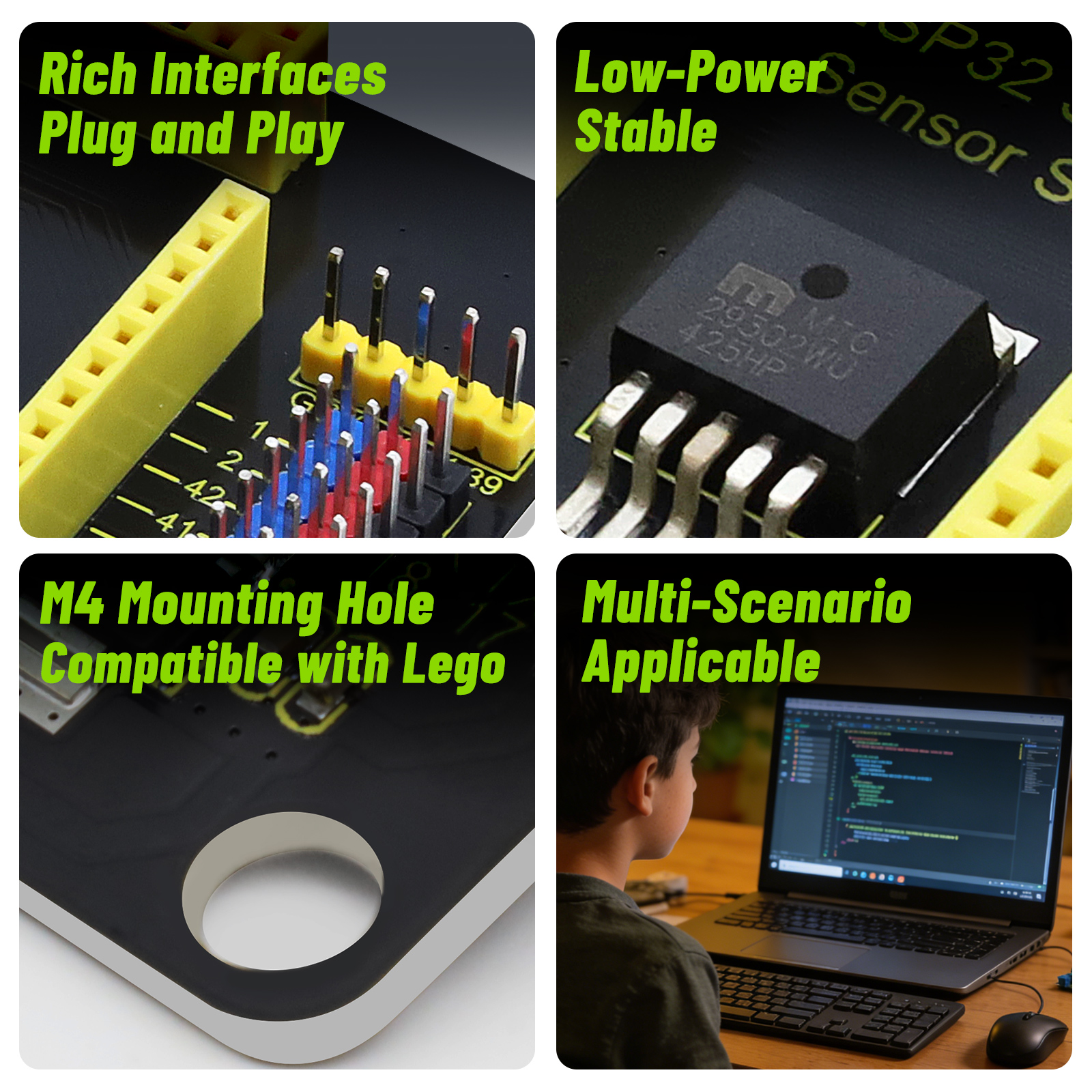

Keyestudio ESP32 S3 Cam Sensor Shield is an expansion board developed based on the S3 cam. It extends the pins of the S3 cam development board through a 2.54mm pin interface and includes interfaces for IIC, serial port, and a 1.54-inch color screen. The expansion board can be powered by a DC interface to supply a DC voltage of 6-9V. Additionally, a toggle switch is reserved for convenient control of power on/off. In terms of structure, it is equipped with four M4 positioning holes and is compatible with the size of Lego parts.
Operating Voltage: DC 6~9V
Operating Current: 60mA (average)
Maximum Output Current: 5V/2A
Operating Temperature: -25℃~+65℃
Dimensions: 80mm * 120mm
