Description

This keyestudio PIR motion module is fully compatible with micro:bit control board.

It is mainly composed of a digital pyroelectric infrared sensor, which is a digital signal output device.

This sensor has built-in filters, strong anti-interference, low voltage and micro power consumption.

The detection distance of the module is 3-5 meters.

The detection angle in the horizontal direction is less than 80°; the detection angle in the vertical direction is less than 55°

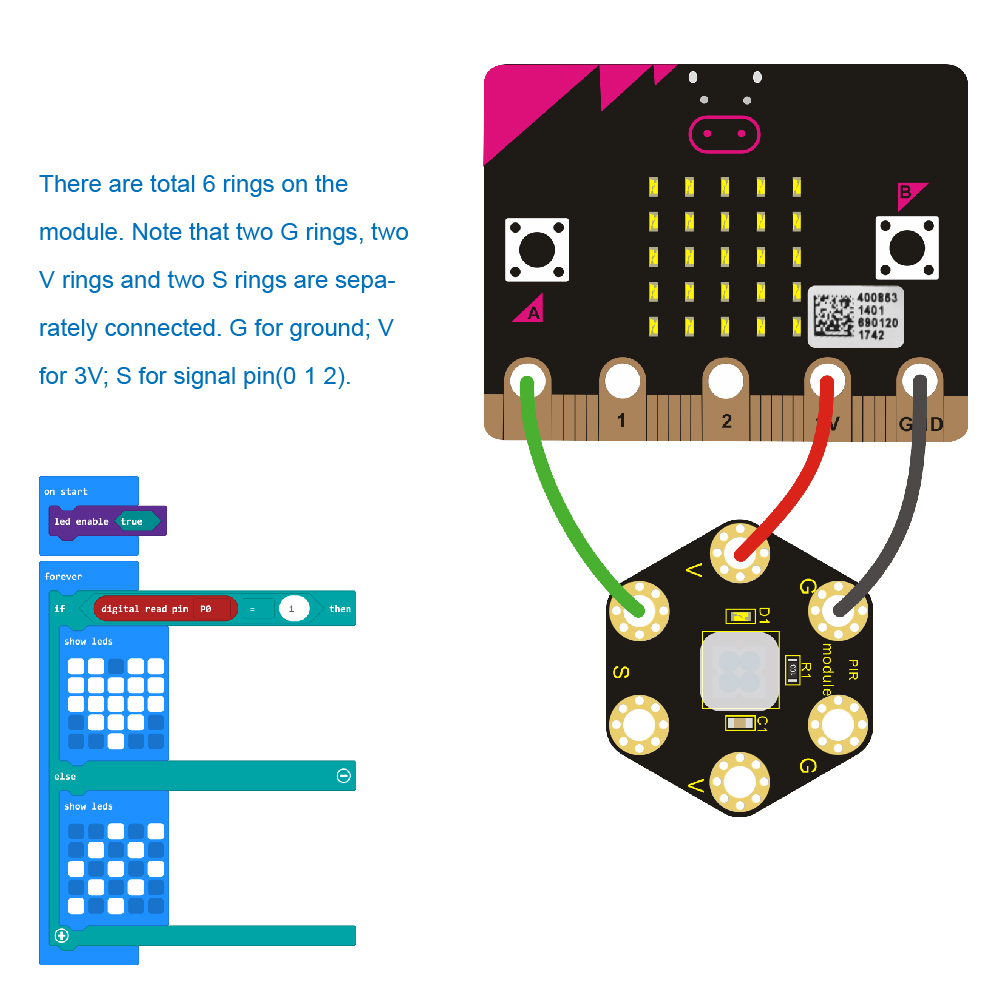

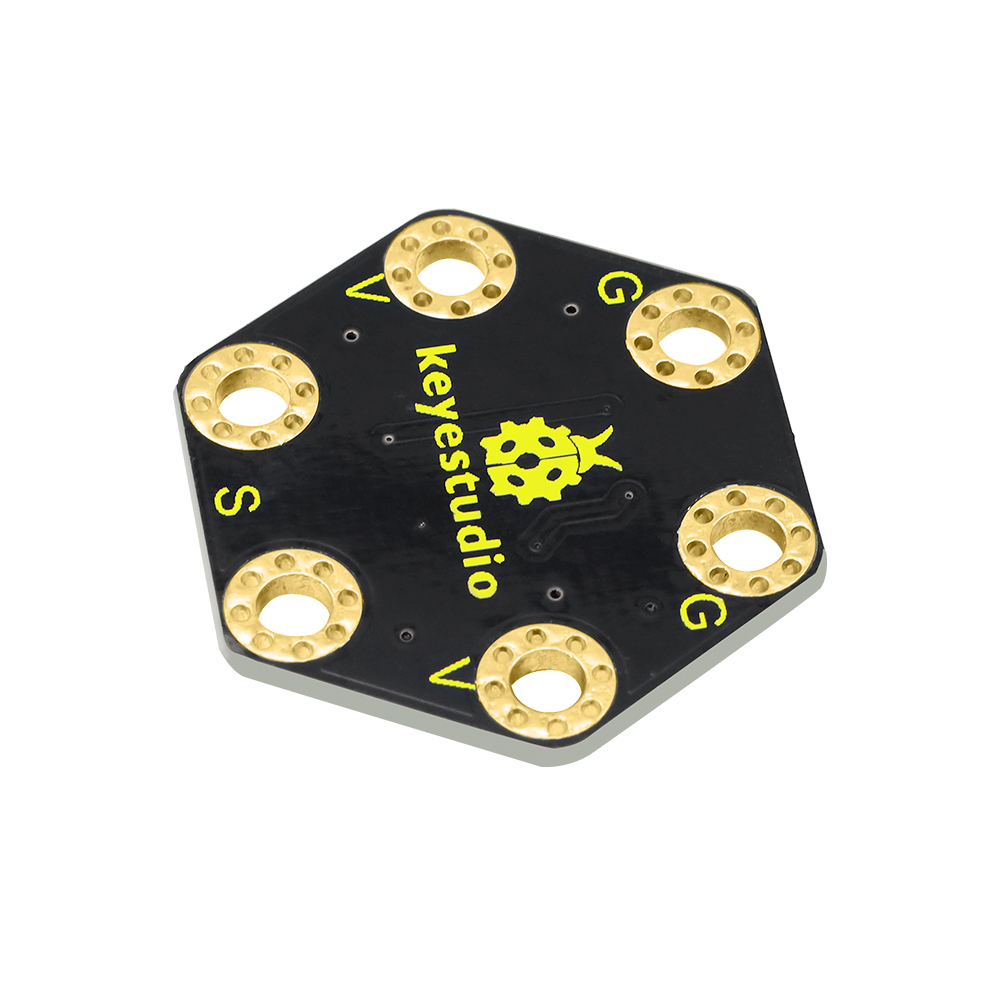

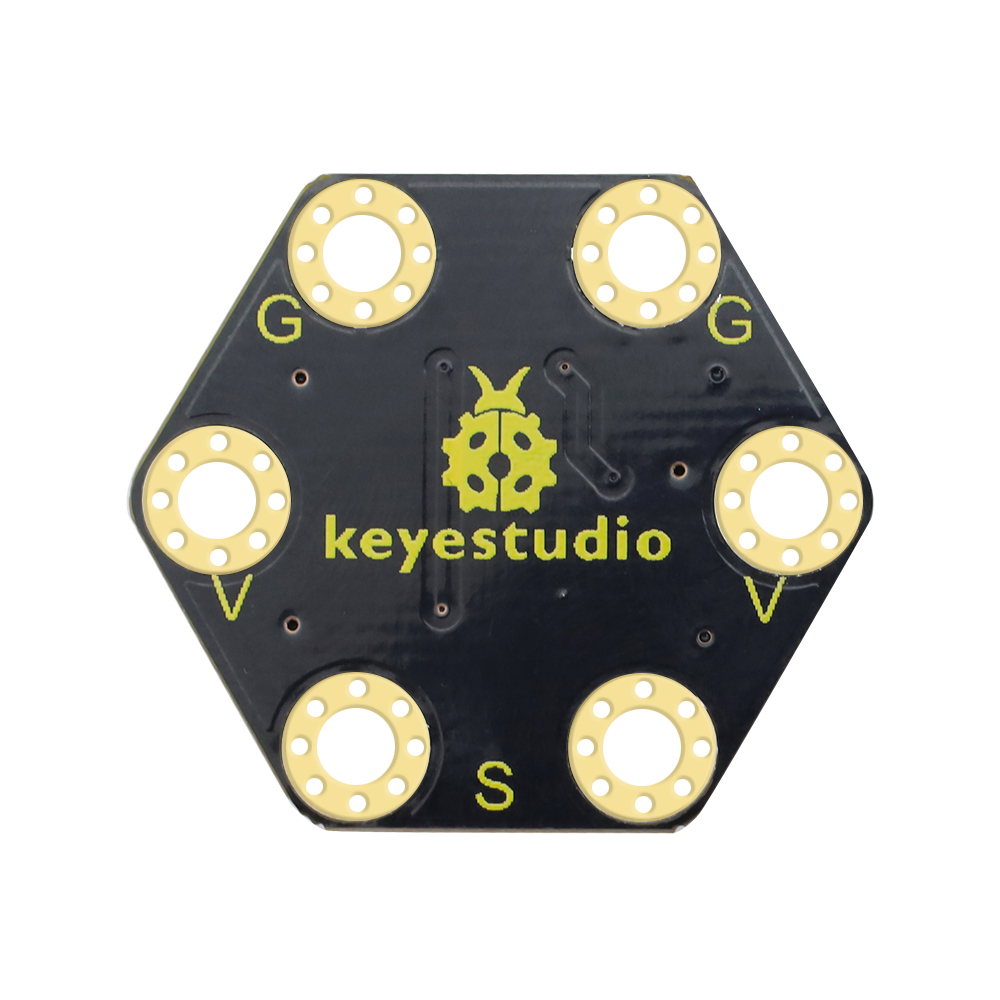

There are total 6 rings on the module. Note that two G rings, two V rings and two S rings are separately connected. G for ground; V for 3V; S for signal pin(0 1 2).

When using, connect the module to micro:bit control board using Crocodile clip line.

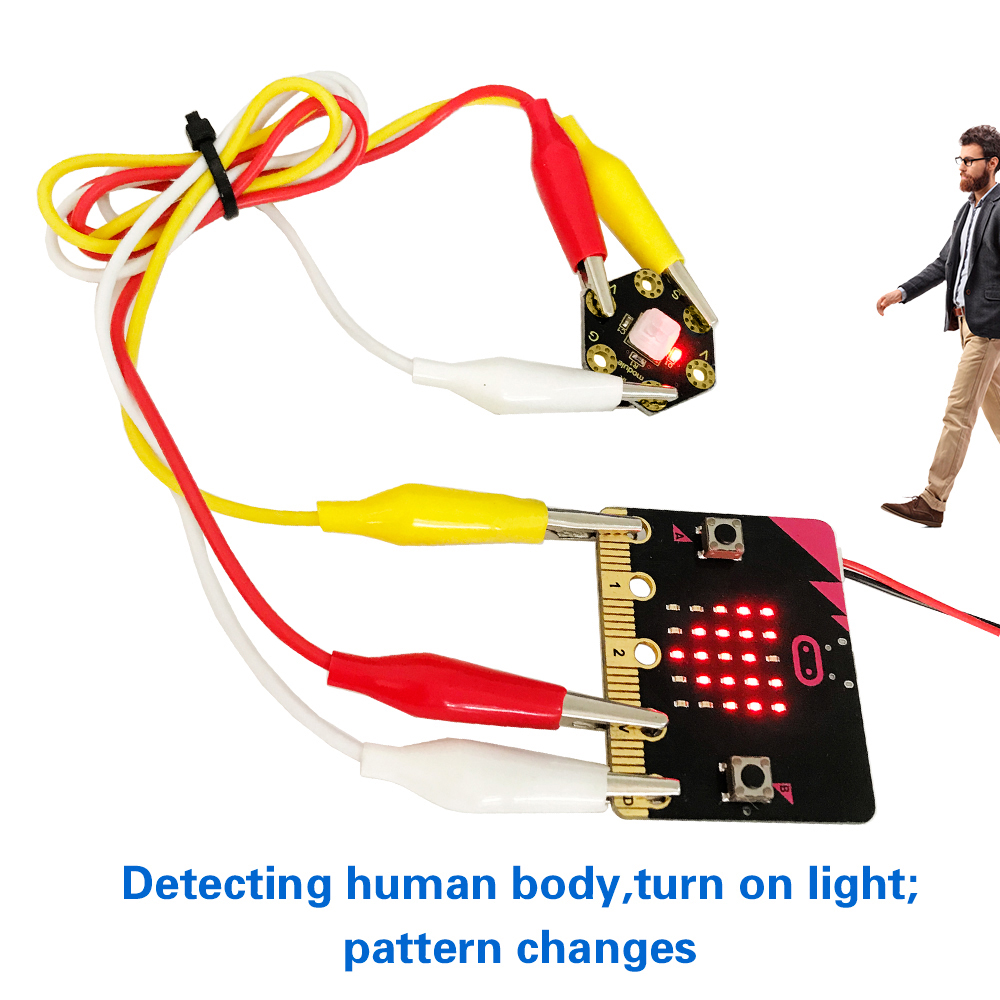

Once detecting someone moving nearby, the signal pin of micro:bit main board will input HIGH level; LED on the module lights.

Technical Parameters

• Working voltage: DC 3.0-3.3V
• Working current: 100mA
• Maximum power: 0.5W
• Output signal: digital signal
• Detection distance: 3-5 meters
• Detection angle: less than 80°in the horizontal direction and less than 55° in the vertical direction
• Operating temperature range: -30℃~ +80℃
• Dimensions: 31mm*27mm*6mm
• Weight: 2g
• Environmental attributes: ROHS
