New! keyestudio Balance Car Shield compatible for arduino balancing car motor drive

    Please select the information you wantX
(174 available)
Shipping Cost:
Estimated Delivery Time:
Please select the country you want to ship from
  • Description
  • Reviews

KS0202-1KS0202 KS0202-2KS0202-3KS0202-4KS0202-5KS0202-6KS0202-7

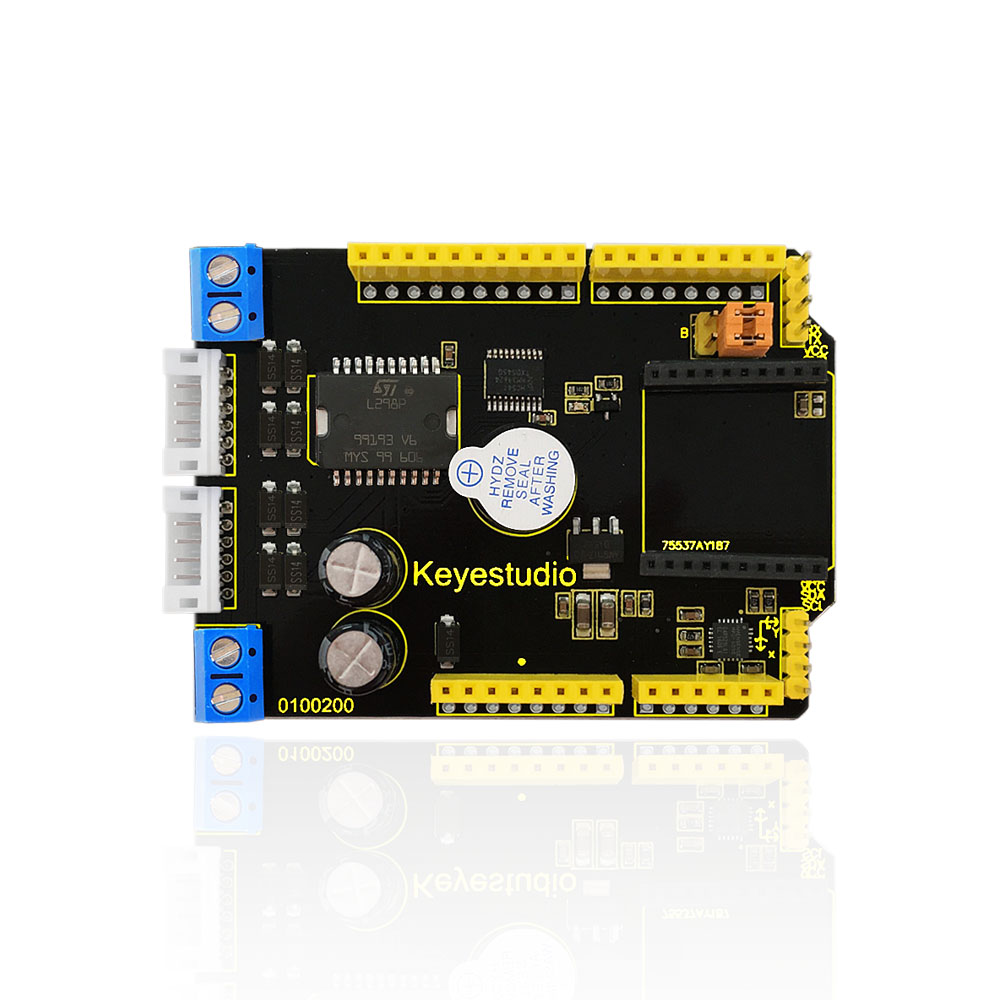

keyestudio Balance Car Shield is developed by keyestudio based on Arduino development
board. It is mainly used in balance car. We equip it with a driver chip called L298P which
is applied to large power motors produced by LGS company. So the shield can drive two
DC motors, whose current reach to 2A. It also has MPU6050 chip coming with DMP which
process data and output through IIC.

1. Working Voltage: DC 12V
2. Working Current in driver: ≤ 2 A
3. Working Temperature: 0℃~+80℃

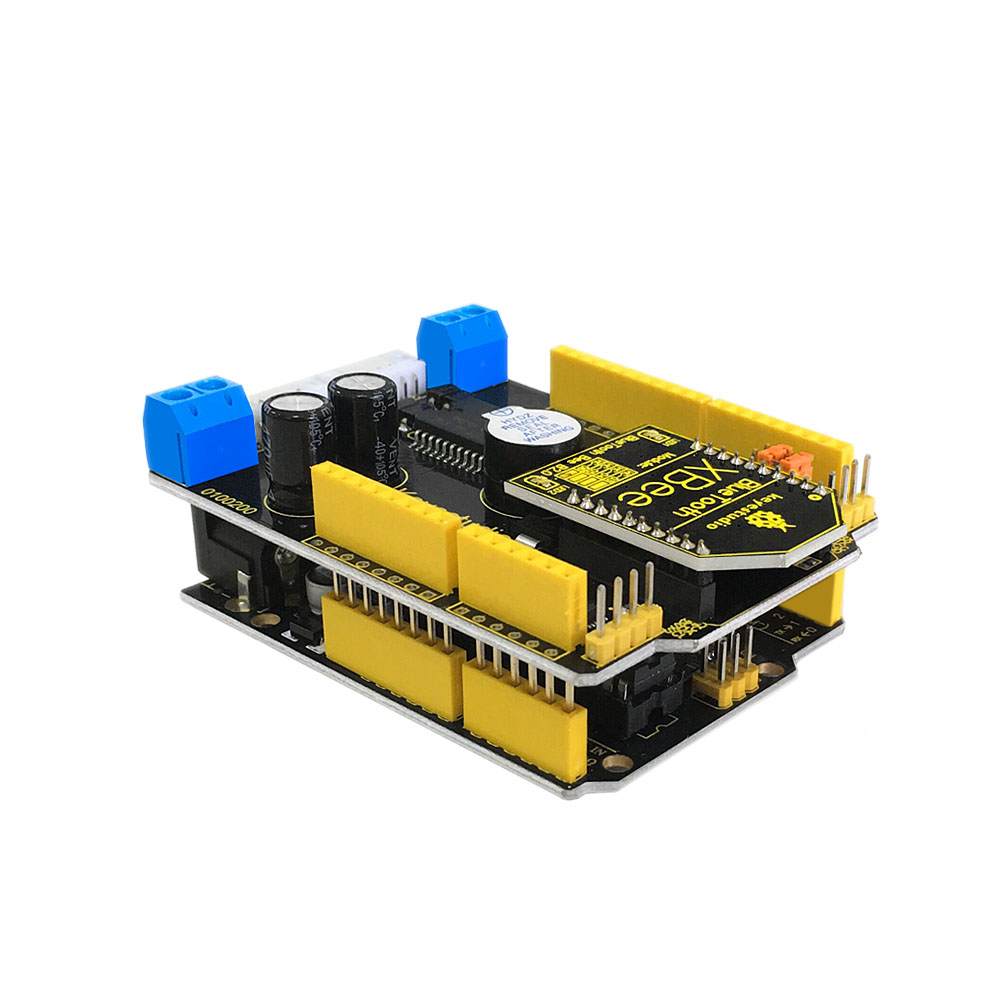

4. Coming with xbee/Bluetooh Bee wireless interface
5. On-board buzzer(D6) used as alarming
6. D11 as PWM pin 1 of motor 1, D9 as PWM pin 2 of motor 2, D 10 and D12 as output pin
of motor 1, D8 and D7 as output pin of motor 2
7. With two PH2.0-6P motor interfaces
