(3PCS/LOT)New 3.3V 5V TTL Logic Level Converter Bi-directional Conversion System For Arduino Electronic Components

MD0237
Wholesale:
5+
$2.38
    Please select the information you wantX
Quantity:
-
+
(966 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
  • Description
  • Reviews

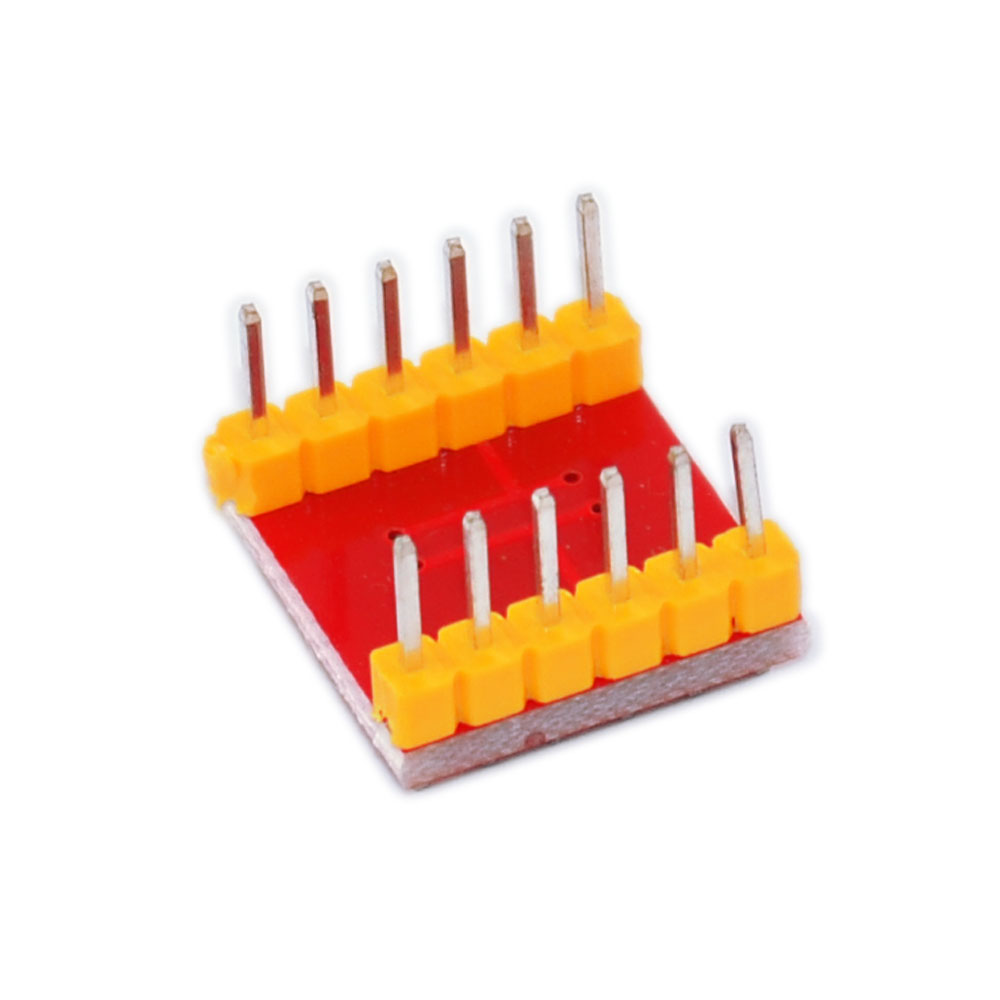

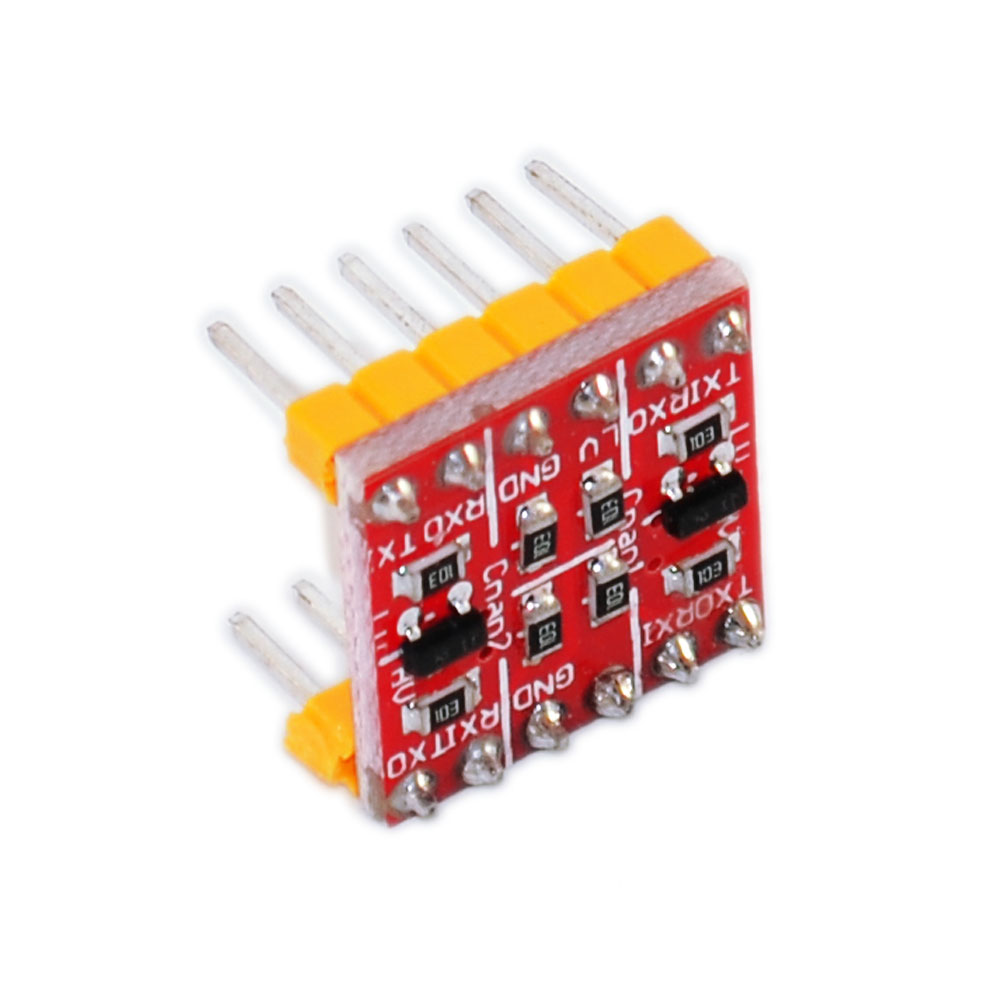

MD0237 (1)MD0237 (3)MD0237 (4)

Size: 15.5 * 16 * 11.5mm

Module features:

2 channels of high-voltage and low-voltage logic logic bidirectional translation

2,2-channel high-voltage logic low voltage logic converted into a one-way conversion

3, the module small, 1.5cm X 1.5cm

4, the module is compatible with the bread plate, can be directly plugged into the breadboard use

Instructions for use: [high voltage is 5V low voltage of 3.3V for example]

HV 5V supply

LV 3.3V power supply connection

GND with negative power, two power commons

RXI input 5v TTL, in RXO 3.3v TTL output

TXI input and output 3.3V TTL, TXO input and output 5V TTL, TXI and TXO bi Huzhuan
