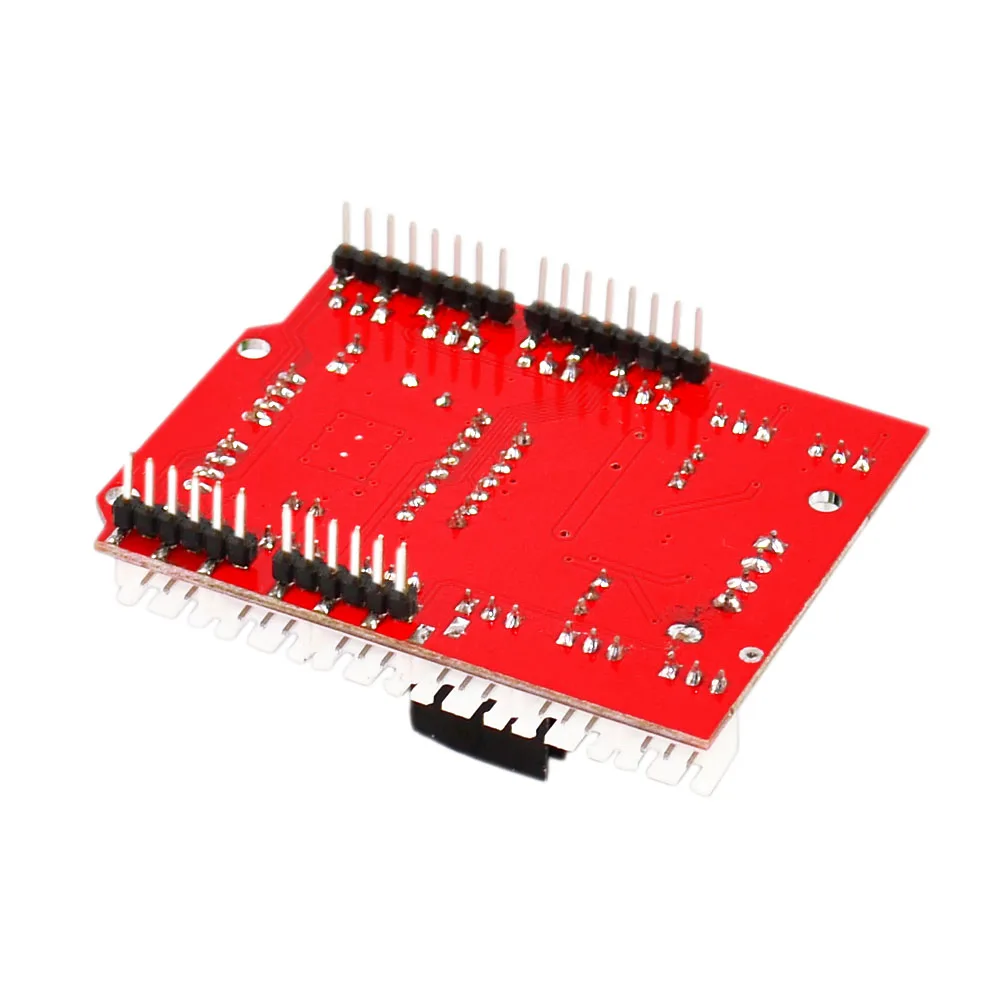

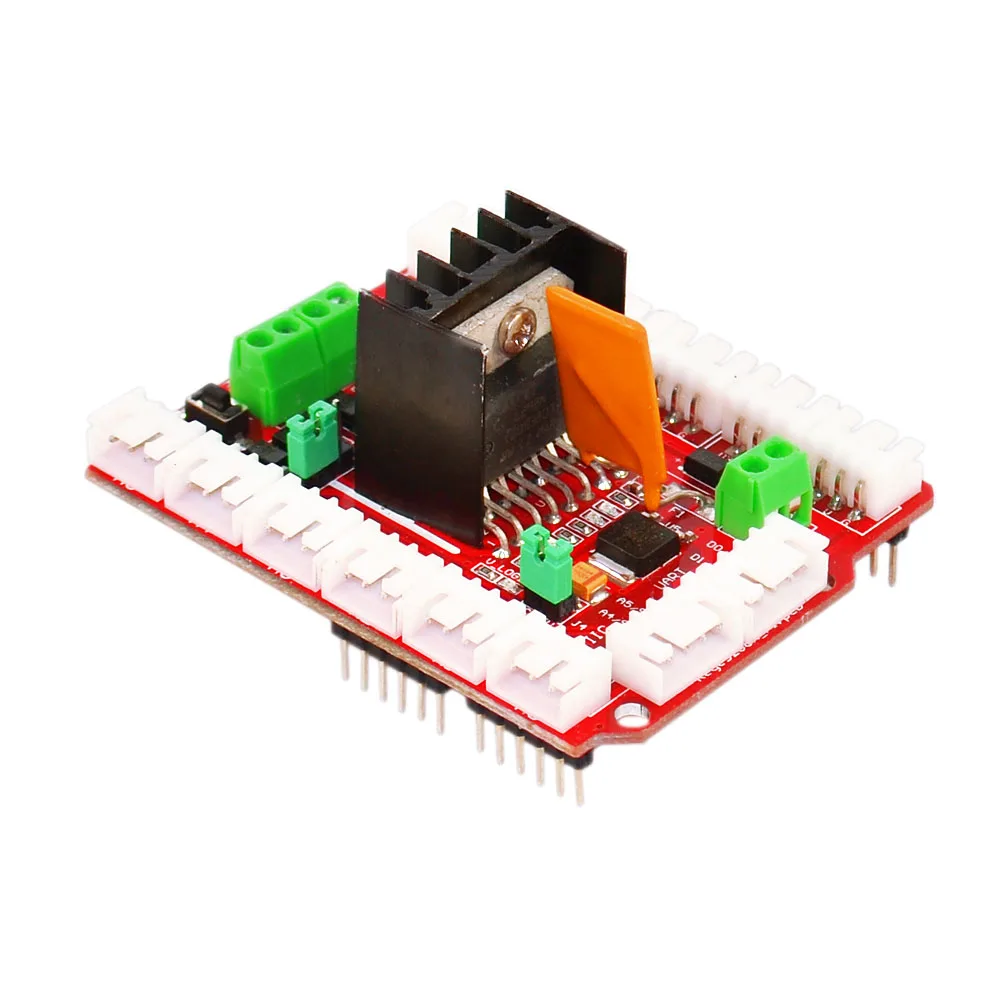

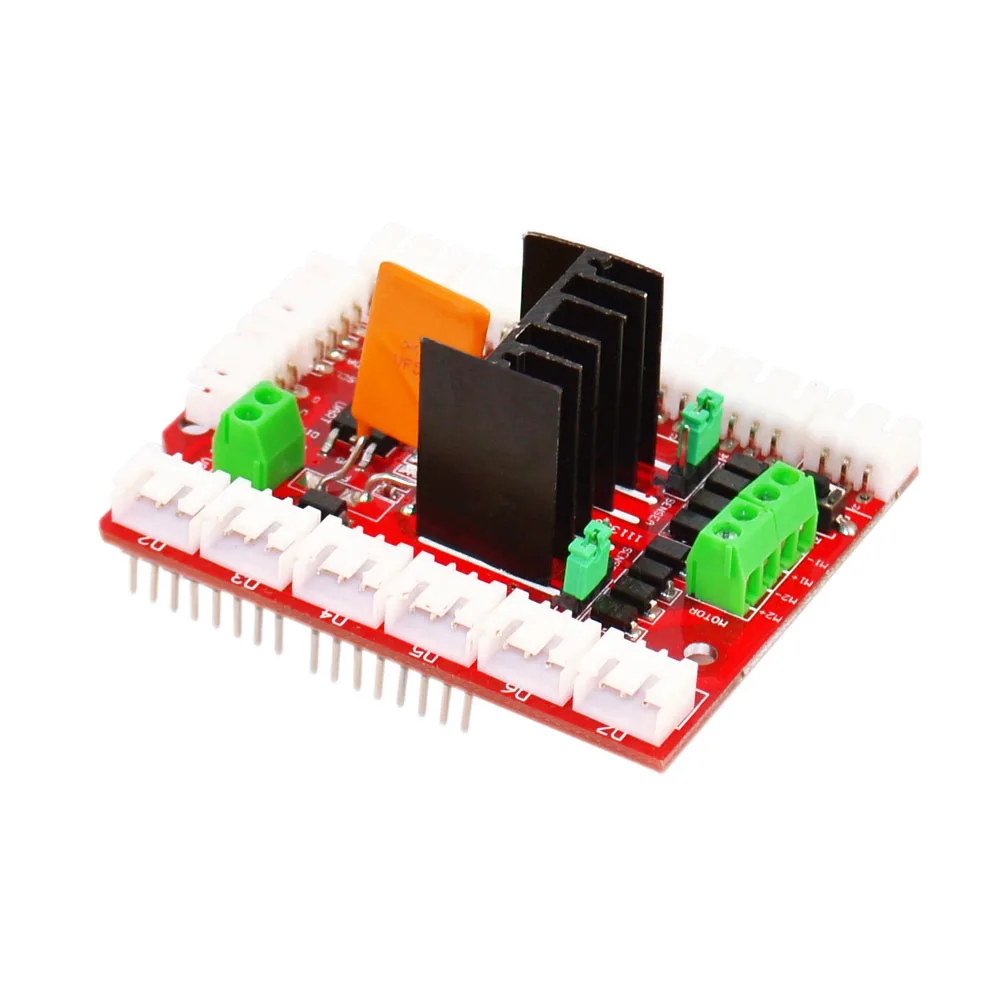

New L298N motor shield dual high current motor drives compatible for Arduino.

EB0019
48 Review(s) Sold:88
Price:
Wholesale:
5+
$7.50
    Please select the information you wantX
Quantity:
-
+
(243 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
  • Description
  • Reviews(48)

1346

L298N Motor Shield DC motor drives using ST STMicroelectronics outstanding high-power motor driver chip dedicated L298N, direct drive DC motors, two-phase, four-phase stepper motor drive current up to 2A, motor output using eight-speed Schott group as a protective diode. The circuit line wiring reasonable mount components are used in films, laminated design can be directly plugged into the use of Aduino, reducing the technical difficulty of the user and the drive motor.

• the logic portion of the input voltage VD: 5V
• Drive part of the input voltage VS: VIN Input 6.5 ~ 12V
• logical part of the work current Iss: <36mA
• Drive Current portion of Io: <2A
• Maximum power dissipation: 25W (T = 75 )
• Control signal input level: high 2.3V <Vin <5V, low-0.3V <Vin <1.5V
• Working temperature: -25 °C+130 °C
• Drive Type: Dual power H-bridge driver Mark Clear
